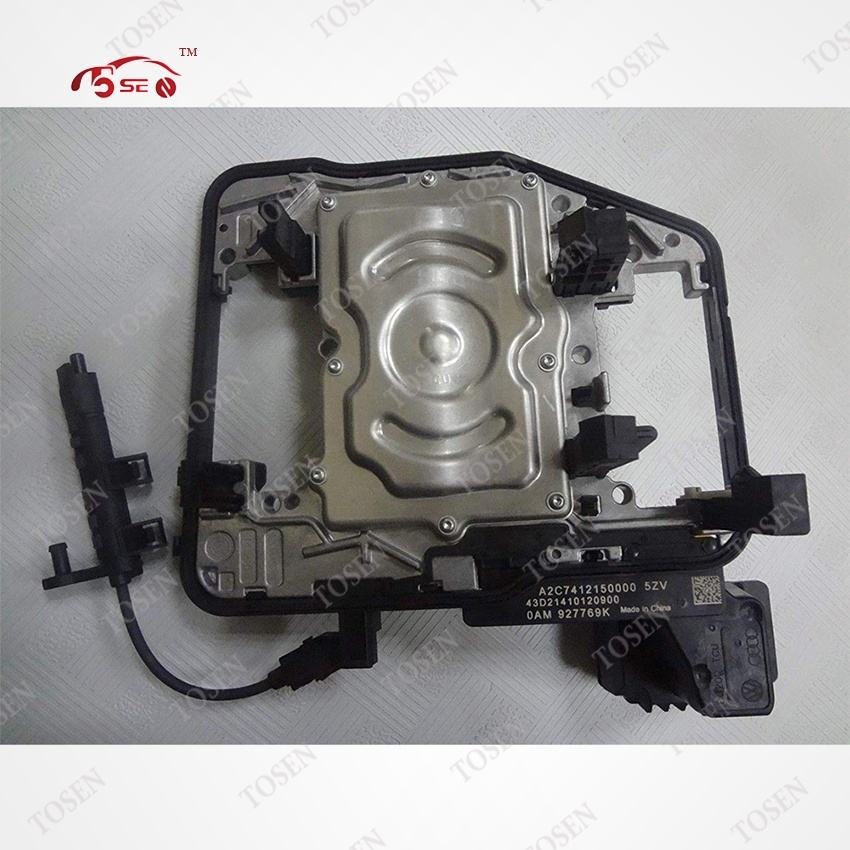

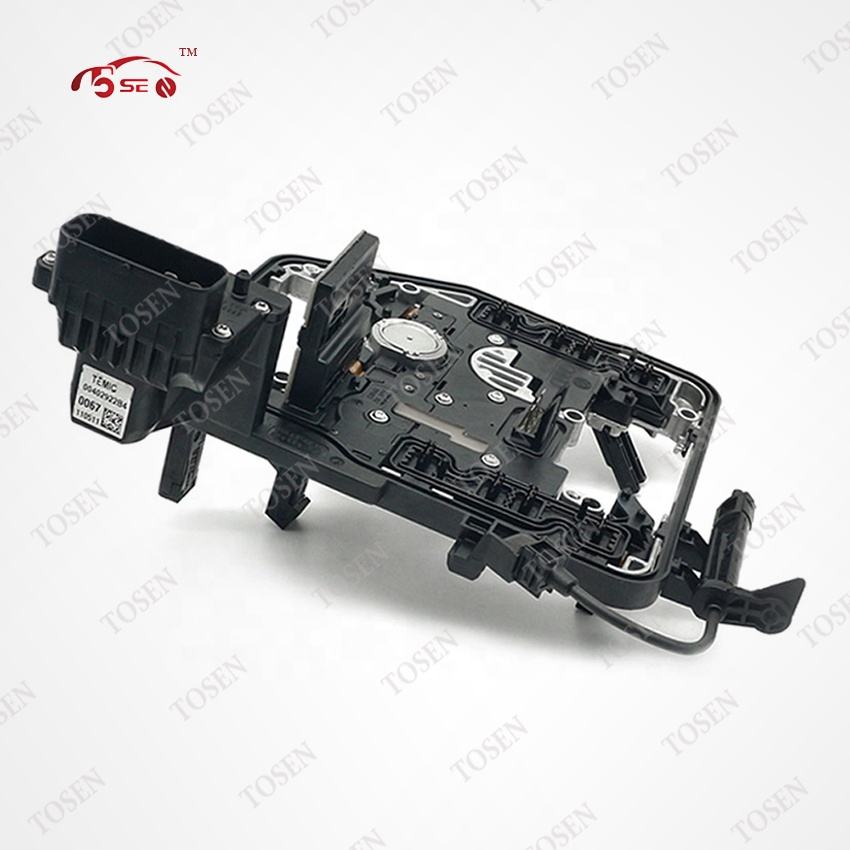

0AM927769K DQ200 Transmission Control Module

The 0AM927769K control module is for DQ200 / 0AM transmission applications. Its K suffix is part of the complete controller identification.

Compare the original module label and hardware layout, and include the transmission code with your enquiry. Software and vehicle coding should be planned with the installing workshop.

Send the original module label, vehicle VIN, transmission code and required quantity. Include the workshop’s coding or programming requirements in the enquiry.

Contact TOSEN for a quotation or browse Transmission Control Units.

The 0AM927769K is a transmission control module for the DQ200 (0AM) seven-speed dry dual-clutch transmission. The module is the electronic control unit that reads the transmission sensor inputs, including input and output shaft speed, selector position and clutch position, and then commands the electrohydraulic mechatronic unit that engages the two clutches and selects the gear pairs. On the DQ200 the control module and the hydraulic actuator are separate assemblies, so the 0AM927769K is the electronics component used when a fault is traced to the control side rather than to the hydraulics. The full reference number, including the K suffix, distinguishes the controller variant, and the module carries the shift software and adaptation data for the transmission it is matched to.

• Component: Transmission control module (TCU) for the DQ200 / 0AM transmission
• Transmission family: DQ200 / 0AM
• Transmission type: seven-speed dry dual-clutch
• Reference number: 0AM927769K — the K suffix is part of the identification
• Role in the system: reads transmission sensor data and controls clutch engagement and gear selection through the mechatronic unit

The 0AM927769K control module is specified for vehicles running the DQ200 (0AM) seven-speed dual-clutch transmission, a dry-clutch family widely used in Volkswagen Group applications. The DQ200 was built in several hardware and software versions, and the controller reference ends in a letter code that distinguishes those variants, so the module must be matched to the transmission by part number and hardware version rather than by vehicle model alone. The K suffix is significant: controllers that share the 0AM927769 base number but carry a different final letter are not interchangeable in every application. Confirm the number on the original module, the hardware version and the transmission code before ordering, and check the connector arrangement and mounting layout against the removed unit.

• Transmission family to match: DQ200 / 0AM
• Transmission type to match: seven-speed dry dual-clutch
• Primary check: the complete controller number on the original module label, including the K suffix
• Secondary checks: hardware version, transmission code, connector pattern and mounting layout against your original unit
• Workshop planning: include the vehicle VIN and any coding or programming requirement in the enquiry

The 0AM927769K transmission control module is supplied as a new component. TOSEN sources DQ200 electronics through a factory-direct supply channel and checks units against the reference number and connector arrangement described on this page before dispatch, so that the variant supplied corresponds to the controller number stated in the order. Distributors and repair workshops building a stock profile for the DQ200 family can request a sample unit so that the hardware version is confirmed against the original before a larger order is placed.

What transmission does the 0AM927769K control module fit?

The 0AM927769K is a transmission control module for the DQ200 (0AM) seven-speed dual-clutch transmission, a dry-clutch unit used across Volkswagen Group vehicles. Confirm that the complete number on your original module matches 0AM927769K, including the K suffix, and that your gearbox is a DQ200 before ordering a replacement control module.

Is the K suffix important when ordering this module?

Yes. On the 0AM927769 controller the final letter code distinguishes the controller variant, and modules that share the same base number but end in a different letter are not interchangeable in every application. Read the complete string printed on the original module and quote it in full, including the K suffix, so that the replacement supplied carries the correct hardware and software identification for the transmission.

Does a replacement DQ200 control module need coding?

A replacement transmission control module for the DQ200 generally needs coding or adaptation to the vehicle after installation, because the module carries shift software and adaptation data that must match the transmission and vehicle configuration. Send TOSEN the original module label, the vehicle VIN and your workshop’s programming requirements when enquiring, so that the scope of the installation work is clear before the module is dispatched.

How do I confirm the correct 0AM controller before ordering?

First read the reference number on the original transmission control module and confirm the complete string, including the suffix, matches 0AM927769K for a DQ200 gearbox. Then compare the electrical connector and mounting layout against your removed unit, and supply TOSEN with the module label, the transmission code and the vehicle details so that the part can be verified before you commit to the order.
