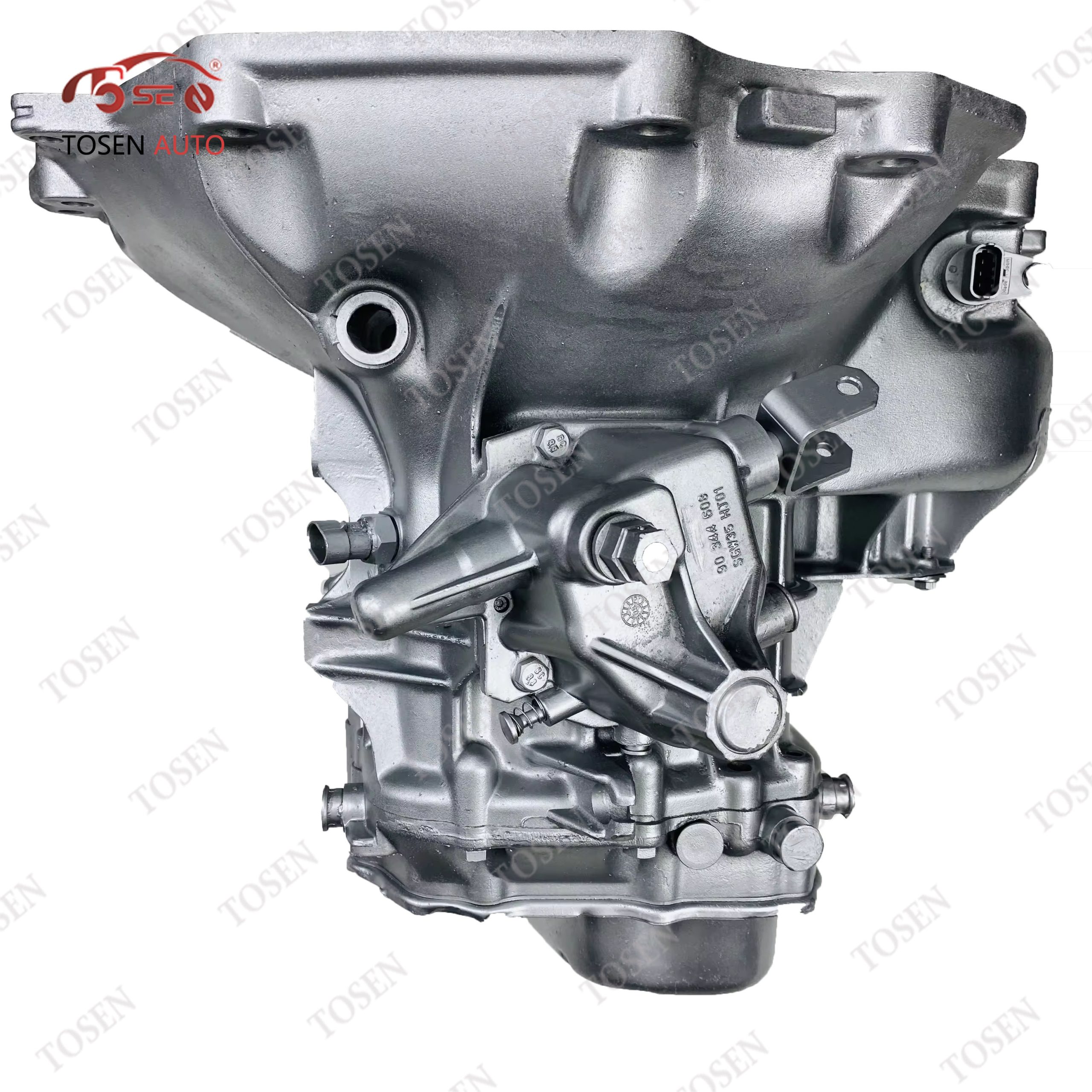

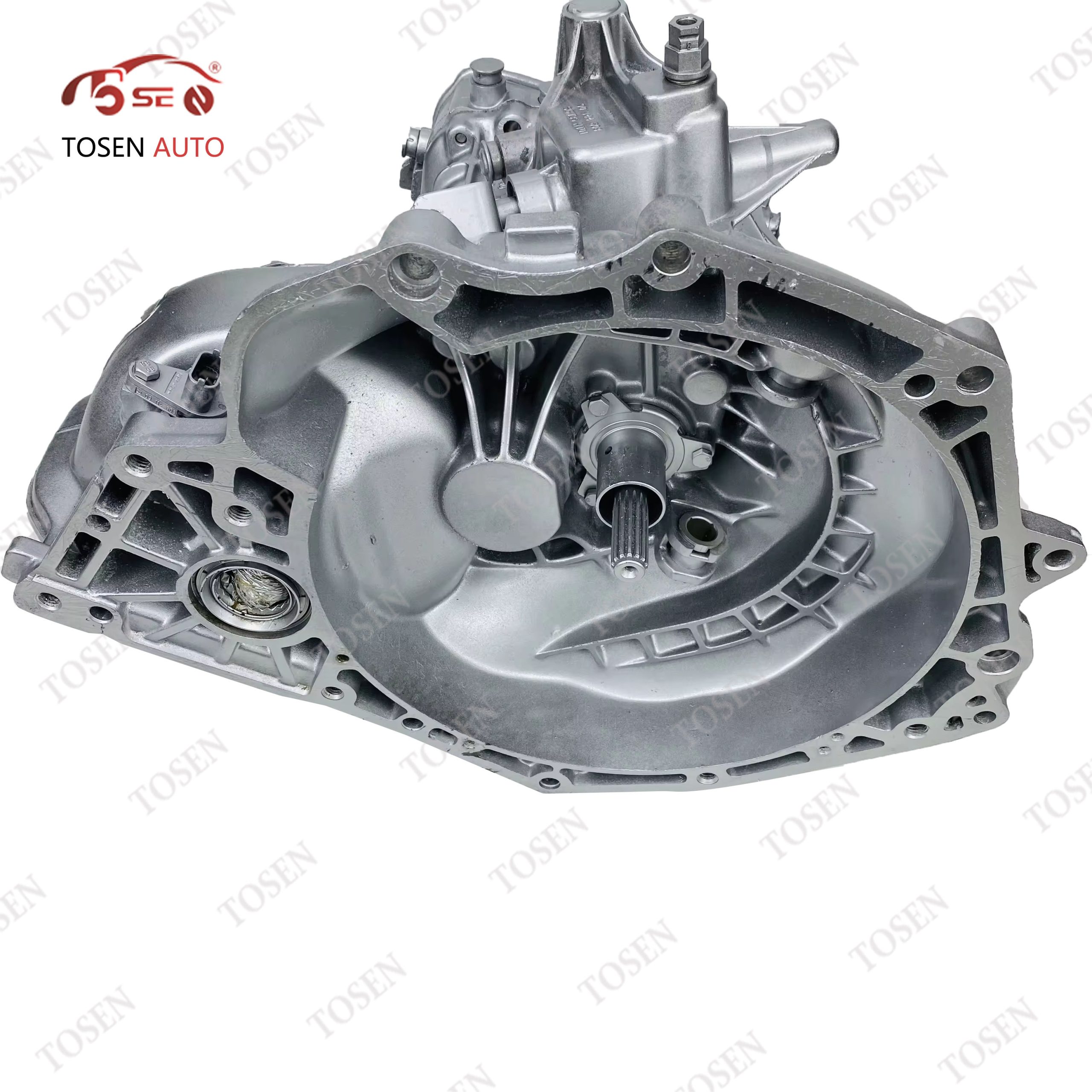

Manual Transmission Gearbox for Chevrolet Aveo

TOSEN offers manual transmission gearbox enquiries for Chevrolet Aveo 1.4-litre and 1.6-litre applications. The exact gearbox version should match the original vehicle configuration.

Include the gearbox code, engine identification and model year. Compare the mounting points, clutch/input arrangement, driveshaft interfaces and electrical connections.

Send the vehicle and engine identification, gearbox code, connection photographs and quantity. Include the destination and the components required with the transmission.

Contact TOSEN for a quotation or browse Manual Transmissions.

The manual transmission gearbox for the Chevrolet Aveo is a manual gearbox assembly offered for Aveo vehicles running the 1.4-litre and 1.6-litre petrol engine applications. It is a complete unit in which the driver selects forward and reverse ratios through an internal rail-and-fork mechanism acting on synchronised gear hubs, converting the engine’s speed and torque into the road speed required at the driving wheels. On the Aveo the gearbox is a compact transverse unit matched to a front-wheel-drive layout, with the clutch housing at one end bolting to the engine and the differential and driveshaft interfaces at the other. Because the same Aveo model was sold with both 1.4-litre and 1.6-litre engines, the gearbox version must be matched to the engine actually fitted.

• Component: Manual gearbox assembly for a front-wheel-drive passenger car
• Vehicle application: Chevrolet Aveo
• Engine application range: 1.4L / 1.6L
• Role in the system: houses the gear clusters and synchronisers that deliver the selected gear ratio to the driveshafts

This manual gearbox is specified for Chevrolet Aveo vehicles in the 1.4-litre and 1.6-litre petrol engine applications. The Aveo name covered more than one generation and market variant, and the 1.4-litre and 1.6-litre versions can use different gearbox specifications, so two vehicles that share the Aveo model name are not automatically fitted with the same transmission. The dependable way to confirm fitment is to check the gearbox code and the engine identification against the original, and then to compare the physical interfaces a workshop can see: the clutch housing and bellhousing pattern, the input and clutch arrangement, the driveshaft interfaces and the electrical connections for the speedometer and reverse light. Supplying the model year and market specification with the enquiry lets the version be confirmed before dispatch.

• Vehicle application to match: Chevrolet Aveo
• Engine application range to match: 1.4L / 1.6L — confirm the engine fitted to your vehicle
• Primary checks: gearbox code, bellhousing and clutch housing pattern, input arrangement
• Secondary checks: driveshaft interfaces, mounting points and electrical connections against your removed gearbox
• Workshop planning: include the model year and market specification with the enquiry

The Aveo manual gearbox is supplied as a new assembly. TOSEN sources manual transmissions through a factory-direct supply channel and checks each unit against the gearbox code, the bellhousing and clutch housing pattern and the driveshaft and electrical interfaces described on this page before dispatch, so that the assembly corresponds to the Aveo application stated in the order. The unit is covered by the 12 months warranty stated in the specification table above. Distributors and repair workshops stocking Aveo driveline components can request a sample so the gearbox version is confirmed against the original, including the engine application, before a larger order is placed.

Which Chevrolet Aveo engines does this manual gearbox cover?

The Chevrolet Aveo manual gearbox on this page is offered for vehicles running the 1.4-litre and 1.6-litre petrol engines. Because the Aveo model covered several variants and the two engine sizes can use different gearbox specifications, confirm the gearbox code and the engine identification on your vehicle. Then compare the bellhousing and clutch housing pattern, the input arrangement and the driveshaft interfaces so the correct version is supplied for the engine actually fitted.

How do I confirm this gearbox fits my Aveo?

Read the gearbox code and the engine identification from your vehicle and compare them with the unit offered, then check the clutch housing and bellhousing pattern, the input and clutch arrangement, the driveshaft interfaces and the electrical connections for the speedometer and reverse light against your removed gearbox. Supplying the model year and market specification with the enquiry lets TOSEN confirm the correct Aveo version before the order is placed.

Is the Aveo 1.4L gearbox the same as the 1.6L version?

Not necessarily. The Chevrolet Aveo was sold with both 1.4-litre and 1.6-litre petrol engines, and the gearbox specifications for the two can differ. Do not assume that a gearbox from one engine size will fit a vehicle built with the other. Confirm the gearbox code and the engine identification for your specific vehicle, and verify the physical interfaces, so the assembly matches the engine and market variant you are servicing.

What warranty applies to the Chevrolet Aveo manual gearbox?

The Chevrolet Aveo manual gearbox is supplied new and covered by the 12 months warranty stated in the specification table on this page. Fit the assembly using standard installation practice for the Aveo driveline and confirm the gearbox code and engine application first. Include the vehicle and engine identification, the gearbox code and the required quantity in your enquiry so the correct unit is dispatched.
