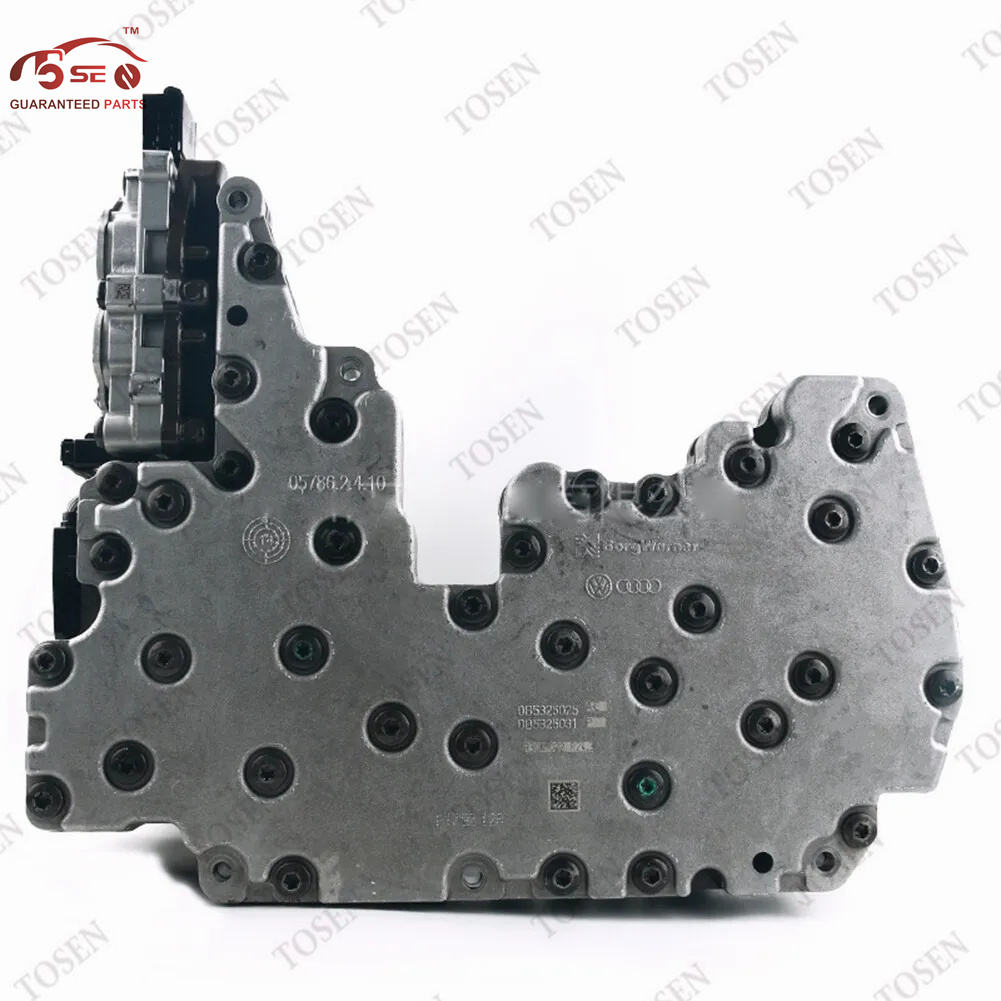

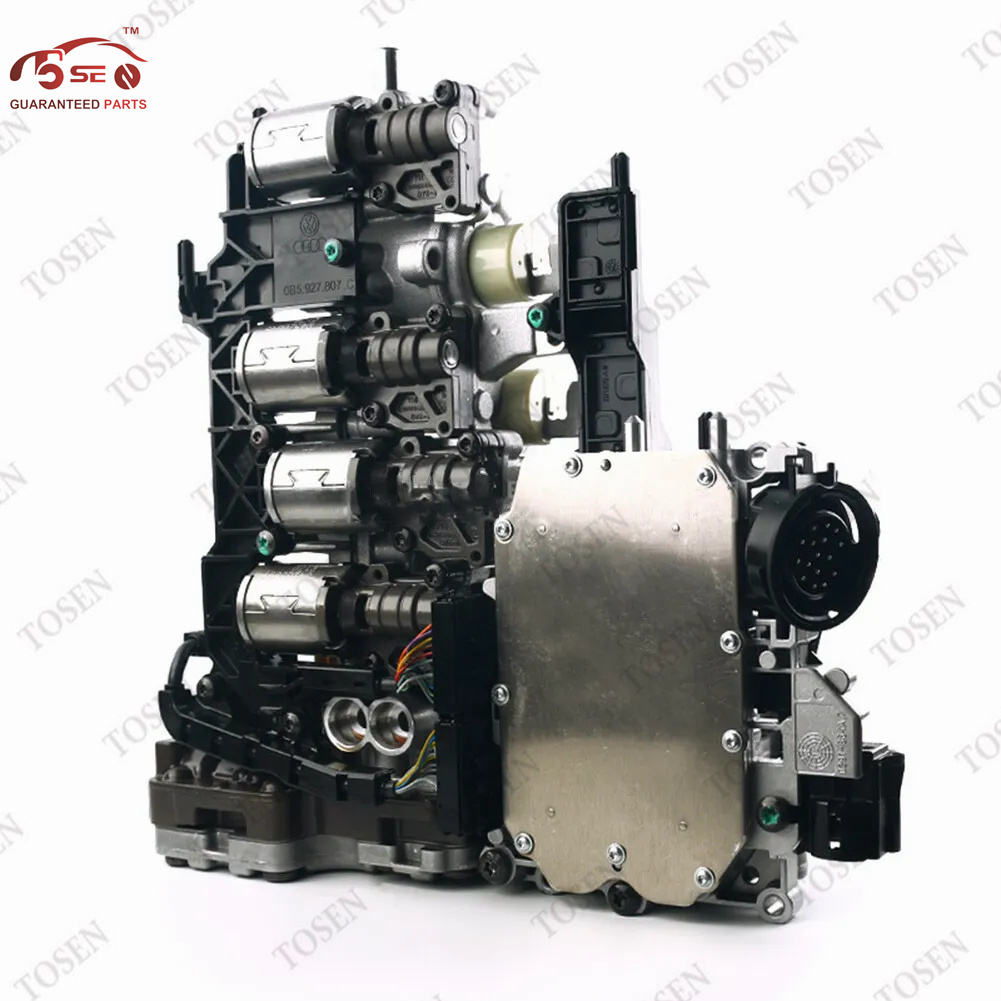

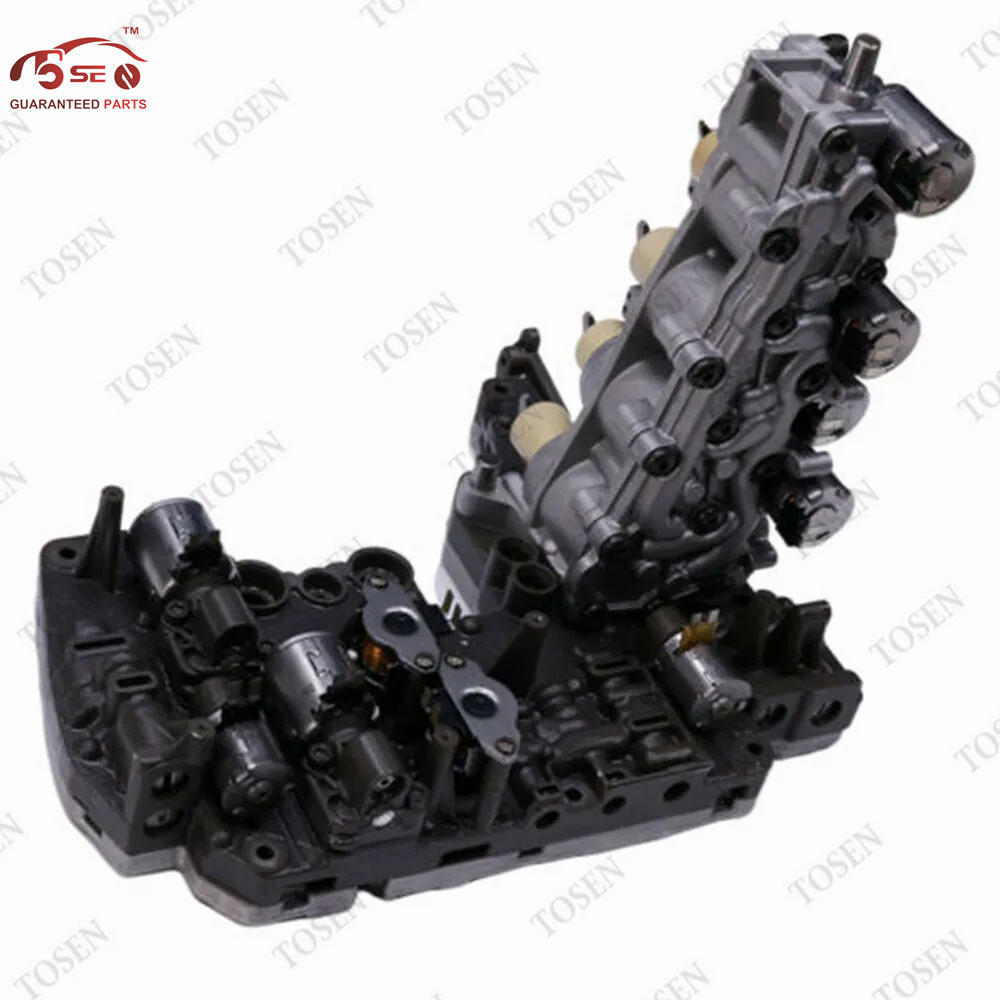

DL501 0B5 Transmission Valve Body for Audi

This valve body is for the Audi DL501 / 0B5 seven-speed dual-clutch transmission family. It forms part of the transmission's hydraulic control system.

Choose the valve body by the gearbox code and original assembly identification. For a mechatronic repair, include the controller and wiring configuration so the hydraulic and electronic components can be matched together.

Send the transmission code, original assembly label, connector photographs and required quantity. Specify the valve body and electronic components needed for the repair.

Contact TOSEN for a quotation or browse Automatic Transmissions.

The DL501 (0B5) valve body is the hydraulic control assembly for the Audi seven-speed dual-clutch transmission. It is the unit that directs pressurised transmission fluid to the two clutches and to the gear actuators, converting an electrical command from the transmission control unit into a regulated hydraulic pressure that engages a clutch or selects a gear pair. On the DL501 the valve body forms the hydraulic half of the mechatronic assembly, working with the electronic controller to determine how smoothly and how quickly each shift completes. Because the assembly sets clutch pressures directly, a fault in the valve body commonly shows as harsh or delayed shifts, slipping or juddering during engagement, a loss of odd or even gear ranges or stored hydraulic and solenoid fault codes. It is a targeted repair item for transmission overhaul on this gearbox family.

• Component: Valve body for the DL501 / 0B5 transmission
• Transmission family: DL501 / 0B5
• Transmission type: seven-speed dual-clutch
• Vehicle application: Audi
• Role in the system: regulates hydraulic pressure for clutch engagement and gear selection as the hydraulic half of the mechatronic assembly

The DL501 (0B5) valve body is specified for Audi vehicles running the seven-speed dual-clutch DL501 transmission, also designated 0B5. The transmission was fitted across a range of Audi models, and the mechatronic hardware was revised over its production run, so the valve body must be matched to the gearbox by its assembly identification and the transmission code rather than by vehicle model alone. For a mechatronic repair, the controller and the wiring configuration should be included so that the hydraulic and electronic components are matched together, because the valve body works as one assembly with the electronic control unit. Compare the casting, the electrical connector and the hydraulic interface against the removed unit before ordering, and specify whether the order covers the valve body alone or the complete mechatronic assembly.

• Transmission family to match: DL501 / 0B5
• Transmission type to match: seven-speed dual-clutch
• Primary check: the gearbox code and the original assembly identification
• Secondary checks: casting, electrical connector and hydraulic interface against the removed unit
• Scope to specify: valve body alone or the complete mechatronic assembly, including the controller and wiring configuration

The DL501 (0B5) valve body is supplied as a new component. TOSEN sources dual-clutch hydraulic assemblies through a factory-direct supply channel and checks each unit against the gearbox code and the assembly identification described on this page before dispatch, so that the valve body presented for installation corresponds to the transmission being repaired. The valve body is covered by the 12 months warranty stated in the specification table above. Repair workshops and distributors building a stock profile for the DL501 family can request a sample unit so that the assembly variant is confirmed against the original before a larger order is placed.

Which Audi transmission does the DL501 0B5 valve body fit?

The DL501 valve body fits the Audi seven-speed dual-clutch transmission designated DL501 or 0B5. Because that transmission was fitted to a range of Audi models and its mechatronic hardware was revised over the production run, you should confirm the correct valve body by matching the gearbox code and the original assembly identification rather than by vehicle model name alone.

What are the symptoms of a faulty DL501 valve body?

A failing DL501 valve body commonly produces harsh or delayed shifts, slipping or juddering during clutch engagement, a loss of odd or even gear ranges and stored hydraulic or solenoid fault codes, because the assembly regulates the pressure that applies each clutch and selects each gear. A diagnostic scan that isolates the affected circuit should be completed first, so that the repair is confirmed to be in the valve body before it is replaced.

Can I order the valve body together with the mechatronic controller?

Yes. On the DL501 the valve body works as one assembly with the electronic control unit, so for a complete mechatronic repair the controller and wiring configuration can be included in the enquiry together with the hydraulic unit. State whether the order covers the valve body alone or the complete mechatronic assembly, so that the hydraulic and electronic components are matched together.

How do I confirm the correct DL501 valve body before ordering?

Read the gearbox code and the assembly identification on the original valve body, and confirm that the transmission is a DL501 (0B5) unit as fitted to the vehicle. Then compare the casting, the electrical connector and the hydraulic interface against the removed assembly, and supply TOSEN with the gearbox code and assembly label so that the part can be verified before you commit to the order.
