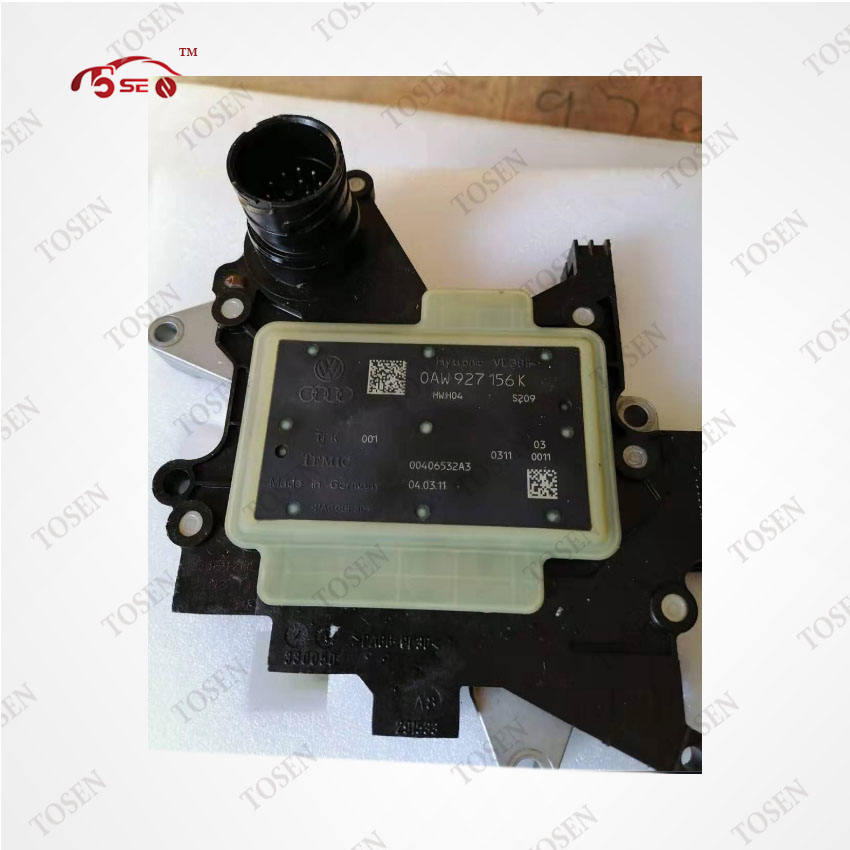

0AW927156K Multitronic Transmission Control Module for Audi

This 0AW927156K transmission control module is for the Audi 0AW Multitronic family. Its complete reference number identifies the controller version for replacement enquiries.

Compare the original module number and hardware label before choosing a controller. Vehicle coding and software compatibility should be included in the workshop installation plan.

Send the original module label, vehicle VIN, transmission code and required quantity. Include the workshop’s coding or programming requirements in the enquiry.

Contact TOSEN for a quotation or browse Transmission Control Units.

The 0AW927156K is a transmission control module for the Audi 0AW Multitronic continuously variable transmission. It is the electronic control unit that processes the gearbox sensor signals, including input and output shaft speed, selector position and variator pressure, and then drives the hydraulic control unit that sets the variator ratio and applies the clutch. Because a Multitronic gearbox changes ratio continuously rather than through fixed gear steps, the module’s output regulates variator clamping pressure rather than selecting discrete gears. The full reference number, including the K suffix, identifies the controller version, and the module carries the control software and adaptation data that must correspond to the transmission it is fitted to.

• Component: Transmission control module (TCU) for the 0AW Multitronic CVT
• Transmission family: 0AW Multitronic
• Reference number: 0AW927156K — the letter suffix is part of the identification
• Role in the system: reads transmission sensor data and controls the hydraulic unit that sets ratio and clutch engagement

The 0AW927156K control module is specified for vehicles running the 0AW Multitronic continuously variable transmission. The 0AW family is a distinct Multitronic generation from the earlier 01J unit, and each generation carried its own hardware and software revisions, so a controller from one family is not a substitute for the other. Confirm fitment by reading the reference number printed on the original module and matching the complete string, including the K suffix, rather than by vehicle model or by a shorter number. The transmission code, the electrical connector pattern and the mounting arrangement should also be checked against the removed unit before ordering.

• Transmission family to match: 0AW Multitronic
• Transmission type to match: continuously variable (CVT)
• Primary check: the complete controller number on the original module label, including the K suffix
• Secondary checks: transmission code, connector pattern and mounting arrangement against your original unit
• Workshop planning: include the vehicle VIN and any coding or programming requirement in the enquiry

The 0AW927156K transmission control module is supplied as a new component. TOSEN sources Multitronic electronics through a factory-direct supply channel and checks units against the reference number and connector arrangement described on this page before dispatch. The module is covered by the 6 months warranty stated in the specification table above. Distributors and repair workshops can request a sample unit so that the hardware version is confirmed against the original before a larger order is placed.

What transmission does the 0AW927156K control module fit?

The 0AW927156K is a transmission control module for the Audi 0AW Multitronic continuously variable transmission. Confirm that the complete number on your original module matches 0AW927156K, including the K suffix, and that your gearbox is an 0AW unit before ordering a replacement. The 0AW family is a different Multitronic generation from the 01J unit, so the two controllers are not interchangeable.

Is the 0AW927156K the same as an 01J control module?

No. The 0AW and 01J designations identify different Multitronic transmission generations, and each has its own controller hardware and software. Although both are Audi continuously variable transmissions, a module from one family does not substitute for the other, so you should match the number on your original controller and confirm which Multitronic generation the vehicle carries before ordering.

Does a replacement 0AW control module need coding?

A replacement transmission control module for the 0AW Multitronic generally requires coding or adaptation to the vehicle after installation, because the module carries control software and adaptation data that must correspond to the transmission and vehicle configuration. Send TOSEN the original module label, the vehicle VIN and your workshop’s programming requirements so the scope of the installation is clear before the module is dispatched.

How do I confirm the correct 0AW Multitronic controller before ordering?

Read the reference number on the original transmission control module and confirm the complete string, including the suffix, matches 0AW927156K. Then compare the electrical connector and mounting arrangement against the removed unit, and supply TOSEN with the module label, the transmission code and the vehicle details so that the part can be verified before you commit to the order.
