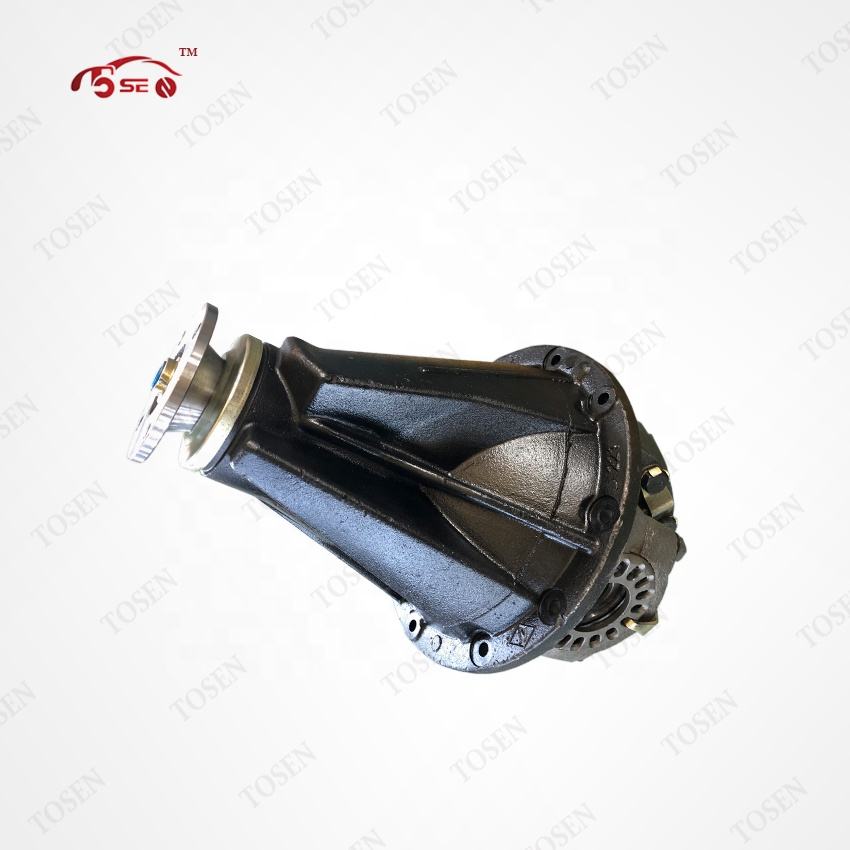

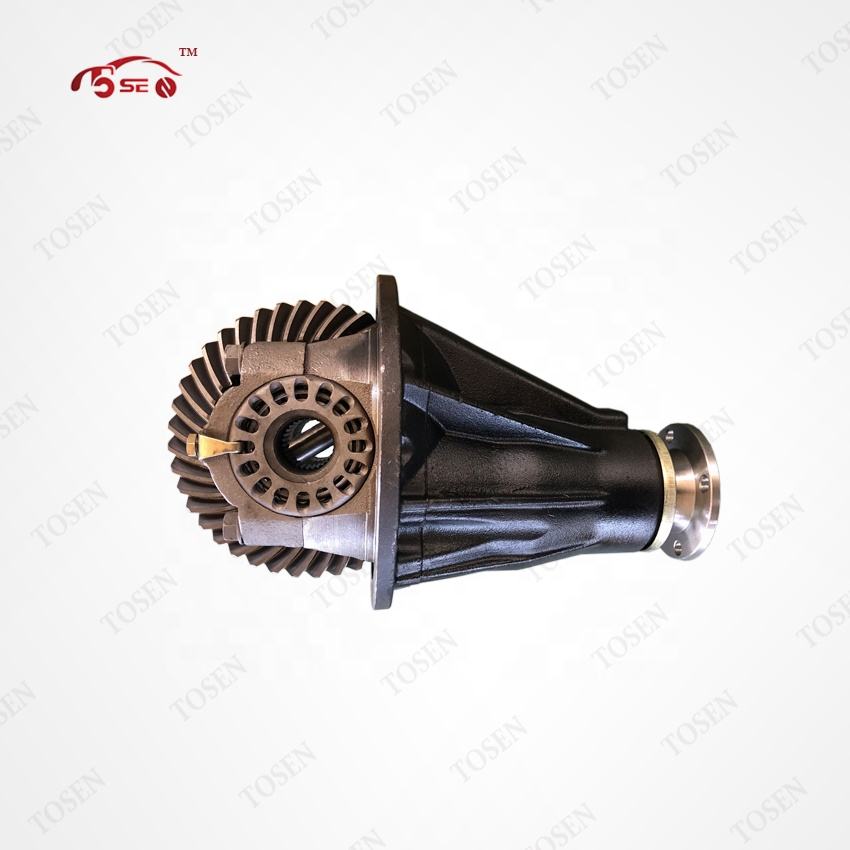

Differential 10 41 for Toyota

The 10-41 differential is an OEM-spec replacement differential for differential 10 41 for toyota – tosen auto. TOSEN AUTO supplies it forged from alloy steel with induction-hardened journals and 100% inspected before dispatch, ready to install. This page gives you the full specification, compatibility, failure symptoms, installation notes and maintenance guidance so you can confirm fitment and source with confidence — no marketing fluff, only the technical facts you need to make a buying decision.

Confirm fitment by the OEM part number and the engine code, not by the vehicle model alone. The same vehicle platform often runs several engine codes over its production life, each requiring a different differential. Cross-check the OEM number stamped on your original part before ordering — ordering by model name is the single most common cause of receiving a wrong part. If you are unsure, send us the OEM number and engine code and we will confirm fitment before you commit.

The differential allows the driven wheels to turn at different speeds in a corner while still transmitting torque to both. A ring gear bolted to the carrier receives torque from the pinion (driven by the driveshaft), and the carrier’s internal spider gears split it between the two axle shafts. The ring-and-pinion tooth contact pattern and backlash are set at the factory — a wrongly-set pattern howls and overheats. Bearing preload on the pinion and carrier decides whether the assembly runs quiet or eats itself.

This differential assembly is built with forged alloy steel ring and pinion gears, induction-hardened on the tooth faces. The carrier is inspected for bearing-journal wear and the case is crack-tested. Backlash and tooth-contact pattern are set to OEM spec, and the bearing preload is set with new bearings. Every assembly is run-in and noise-checked before dispatch. We do not sell loose used gears — every unit is a built, tested assembly.

• Howling under load that disappears on overrun — worn ring and pinion tooth contact.
• Clunking on take-up — excessive backlash from worn gears or a failing carrier bearing.
• Whine at a fixed speed — pinion bearing failure; continuing sheds debris through the carrier.
• Axle seal leak that recurs — a worn bearing journal has grooved the seal surface.

1. Set backlash and contact pattern with a dial indicator and marking compound — do not just bolt in.
2. Replace the pinion and carrier bearings and set preload with new crush sleeves / shims.
3. Use the correct limited-slip additive if applicable, and the correct gear oil weight.
4. Break in the gears — 500 km gentle driving before towing or heavy load.

A differential’s life is decided by gear-oil quality, bearing preload and water ingress. Change the oil at the interval, use the correct limited-slip additive where applicable, and address any seal leak before water or dirt enters. A howl that appears is a bearing or contact-pattern issue — catch it early and the gears are usually reusable; leave it and the debris takes out the whole carrier.

This differential assembly is used as a replacement for a unit that has failed — after ring-and-pinion tooth failure (howling), carrier-bearing failure (clunking), or a wiped thrust washer that has changed backlash. It is the standard choice for workshops and 4×4 specialists who need a built, backlash-set assembly rather than a loose gear set. Common scenarios: a pickup that howls under load; a 4×4 that has snapped a carrier cross-shaft off-road; a truck that has shed a bearing and contaminated the whole housing. The ratio must match the opposite axle on a 4×4.

Every differential assembly is run-in and noise-checked before dispatch. The ring-and-pinion backlash is set with a dial indicator and the tooth contact pattern is verified with marking compound; the pinion and carrier bearing preloads are set with new bearings; and the case is crack-tested. Backlash, pattern and preload are recorded per unit. A howling or incorrectly-set assembly is reworked before shipment — we do not ship an unset differential.

TOSEN AUTO supplies this part factory-direct to overseas distributors and workshops, with sample orders accepted for qualification and volume pricing from MOQ. Each unit is individually protected — corrosion-inhibited, sealed and packed in rigid export cartons with foam bracing — to arrive undamaged after long-distance freight. A warranty against manufacturing defects applies from the date of dispatch; in the rare event of a defect, send us the batch number and photos and we will resolve it under the warranty terms. Lead time on stock items is 3–5 working days; air freight to most destinations 7–12 days.

• OEM-spec build — correct geometry, tolerances and material for the 10-41 application, not a generic part.
• 100% inspected (runout, tolerance, finish) before dispatch.
• Factory-direct B2B pricing from TOSEN AUTO; sample orders accepted for qualification.
• Flexible MOQ and export packaging for overseas distributors.
