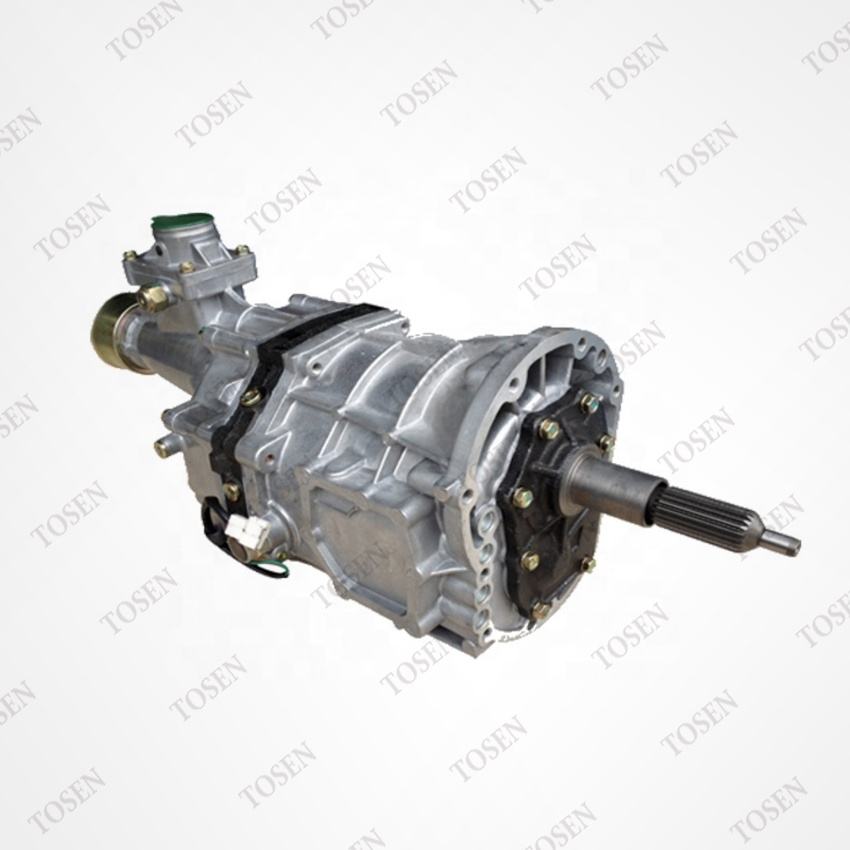

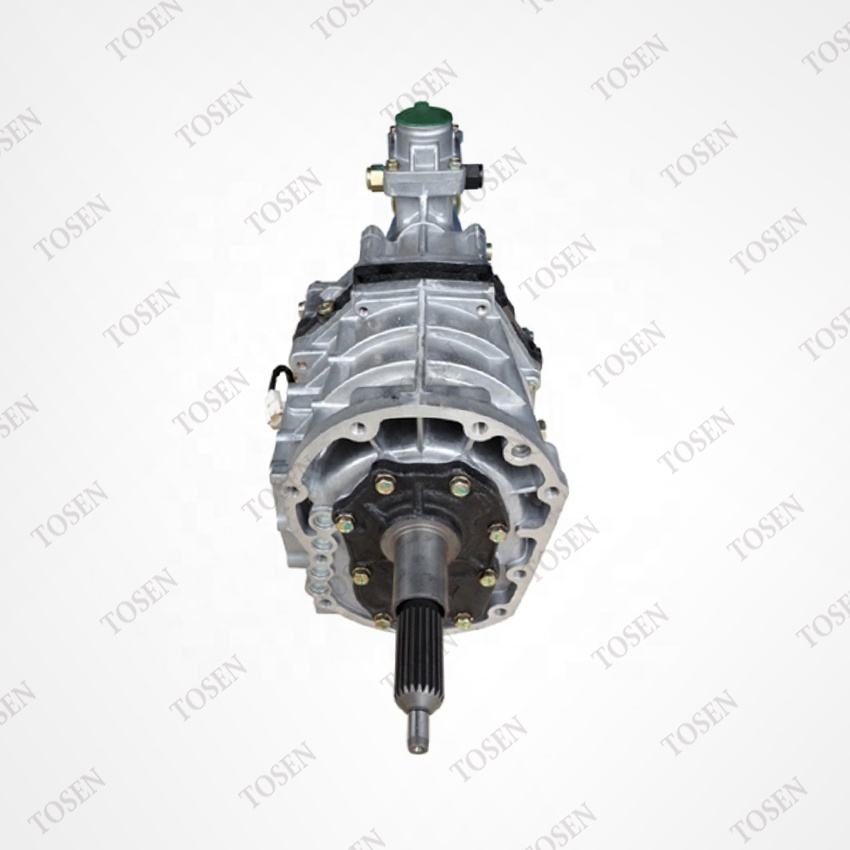

Manual Transmission Gearbox for Toyota Hilux 4×2

This manual transmission gearbox is offered for Toyota Hilux 4×2 replacement enquiries. The original gearbox identification and engine configuration determine the assembly needed.

Compare the bellhousing, input splines, output connection and mounting positions. Include the chassis code and the gearbox label with the enquiry.

Send the vehicle and engine identification, gearbox code, connection photographs and quantity. Include the destination and the components required with the transmission.

Contact TOSEN for a quotation or browse Manual Transmissions.

The manual transmission gearbox for the Toyota Hilux 4×2 is a five-speed-class manual gearbox assembly that transfers engine torque to a rear-wheel-drive layout through a driver-selected set of gear ratios. In a 4×2 Hilux the gearbox output reaches the rear axle through a single propeller shaft, so the assembly carries no transfer case and no front output flange. The driver selects ratios through an internal rail and fork mechanism that slides synchronised hubs onto the gear clusters, and the clutch housing at the front of the case bolts directly to the engine backplate. Because the 4×2 layout drives one axle only, the rear extension housing and output yoke are configured for a two-wheel-drive driveline rather than a four-wheel-drive transfer connection.

• Component: Manual gearbox assembly for a 4×2 (rear-wheel-drive) vehicle
• Vehicle application: Toyota Hilux
• Drive layout: 4×2 — single rear-wheel drive output, no transfer case
• Role in the system: houses the gear clusters and synchronisers that convert engine speed and torque into the selected road speed

The gearbox on this page is specified for Toyota Hilux vehicles in 4×2 configuration. Hilux models were built across several generations and engine families, and a 4×2 gearbox is not interchangeable with the 4×4 version of the same model because the cases, output arrangements and mounts differ. The reliable way to confirm fitment is to compare the removed gearbox against the unit offered here on the points that a workshop can see and measure: the bellhousing bolt pattern, the input shaft spline, the output connection at the rear extension housing, and the position of the mounts and the gear lever. Supplying the chassis code and the identification on the original gearbox label allows the assembly to be checked against the enquiry before dispatch.

• Vehicle application to match: Toyota Hilux
• Drive layout to match: 4×2 — confirm the vehicle is rear-wheel-drive, not 4×4
• Primary checks: bellhousing bolt pattern, input shaft spline and count, output yoke type
• Secondary checks: gear lever position, mount locations and speedometer drive arrangement against your removed unit
• Workshop planning: include the chassis code and the gearbox label with the enquiry

The Hilux 4×2 manual gearbox is supplied as a new assembly. TOSEN sources manual transmissions through a factory-direct supply channel and checks each unit against the bellhousing pattern, input spline and output arrangement described on this page before dispatch, so that the assembly presented for installation corresponds to the 4×2 application stated in the order. The unit ships as a complete gearbox assembly; components such as the clutch, the release mechanism and the rear mounting are confirmed against the enquiry rather than assumed. Distributors and repair workshops building a stock profile for Hilux driveline work can request a sample so the case and output configuration are confirmed against the original before a larger order is placed.

What is the Toyota Hilux 4×2 manual gearbox on this page?

The Toyota Hilux 4×2 manual gearbox on this page is a manual transmission assembly for Hilux vehicles in rear-wheel-drive configuration. It is a 4×2 unit, meaning it delivers output to a single rear axle through one propeller shaft and does not include a transfer case or a front output. Confirm your vehicle is a 4×2 Hilux before ordering, because the 4×4 gearbox for the same model uses a different case and output arrangement.

How do I check that this 4×2 gearbox fits my Hilux?

Compare the removed gearbox with the unit offered on the points a workshop can measure: bellhousing bolt pattern, input shaft spline and count, rear output connection, gear lever position and mount locations. Then supply the vehicle chassis code and the identification printed on the original gearbox label, so the assembly can be checked against your 4×2 Hilux enquiry before the order is confirmed.

Is the 4×2 Hilux gearbox the same as the 4×4 version?

No. The 4×2 and 4×4 versions of the Hilux manual gearbox are not interchangeable, because the 4×4 assembly must connect to a transfer case and carry a front output, while the 4×2 assembly drives the rear axle only. The case, the rear extension housing and the output yoke differ between the two, so order for the drive layout of your vehicle rather than by model name alone.

What should I send with a Hilux 4×2 gearbox enquiry?

Send the vehicle chassis code and engine identification, the identification on the original gearbox label, photographs of the bellhousing and rear output connection, and the quantity required. Include the destination and note whether you need the assembly on its own or with related components, so TOSEN can confirm the 4×2 configuration and quote accurately for your Hilux.
