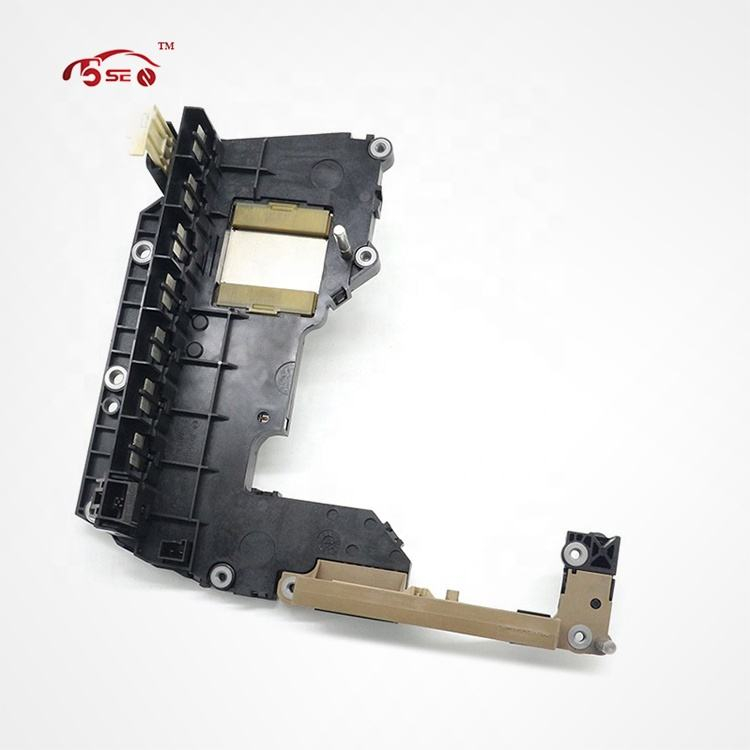

The 0260550008 conductor plate is the main electrical board inside the ZF 6HP19 and 6HP21 six-speed automatics fitted to a long list of BMW and Audi models. When this plate fails, the gearbox usually drops into limp mode, shifts hard, or refuses to shift at all. Because it combines the transmission control unit, solenoids, and speed sensors in one assembly, choosing the right one is not just a parts-number exercise — it decides whether your repair finishes in a day or turns into a second teardown. This guide walks through fitment confirmation, blank versus programmed units, what ships in the box, bench testing, and the settings you must run after installation.
What Exactly Is the 0260550008 Conductor Plate?
Inside the 6HP19 and 6HP21, the conductor plate is the flat assembly bolted to the bottom of the valve body. It carries the transmission control module, the solenoid connectors, and the speed sensors — usually the input, output, and sometimes the turbine speed sensor. Oil flows past it, so it must seal correctly against the valve body. The plate does the “thinking” for the gearbox: it reads speed and pressure signals, and it fires the solenoids that control clutches and shifts.
Part numbers 0260550008, 0260550010, and 0260550016 belong to the same conductor-plate family used across the 6HP19, 6HP21, and related 6HP26 applications. The number on the old plate matters more than the name of the car, because BMW and Audi used several variants over the model years. Reading the number off the old part — not off the car — is the correct starting point.
Common failure symptoms include a sudden limp mode with a gearbox warning, delayed or harsh shifts, codes such as P0700, P0715 or P0717 (speed-sensor related), and a transmission that will not engage reverse or drive until it cools. When the harness inside the plate cracks or a sensor connection corrodes, you get exactly these intermittent electrical faults. The plate is usually the fix, not the valve body, which is why workshops replace it so often.
The exact unit we supply for this repair is shown on our BMW/Audi 6HP19/6HP21 Transmission Conductor Plate | OE 0260550008 Quality page, with the OE number, test policy, and shipping terms listed.
Does the Part-Number Suffix Matter? Can 0260550010 Replace 0260550008?
This is the most common question we get, and the honest answer is: it depends on the vehicle control system, and it is not a guess you want to make. The 6HP19/6HP21 conductor plates share the same physical layout, but the transmission control unit software and connector pin-outs differ between vehicle groups. A plate that physically bolts in can still refuse to code, or worse, produce a component-protection fault when you try to adapt it to a different car.
Treat the OE number as the first filter, not the last word. The safest path is to match the number stamped on your old plate and then confirm the vehicle details with the seller. A reputable supplier will ask for the old-part number, the transmission code from the sticker, and the VIN before quoting. If a listing only says “fits 6HP19,” that is a signal the seller has not verified the variant.
ZF’s service documentation for the 6HP family stresses the same point: the mechatronic unit and its wiring are matched to the vehicle calibration, and replacing them with an unverified part can trigger fault memory and adaptation problems. In other words, the suffix check is not a luxury — it is part of the repair procedure. For a walk-through of how the transmission control unit and its software work across different gearboxes, see our related technical guide on TCU, DSG and CVT control units.
Practical tip for the workshop: photograph the old plate’s label before you remove it. The sticker carries the full OE number and a build date. Those two details, plus the VIN, are enough for a supplier to cross-check the exact variant.
Blank or Programmed: Does the Conductor Plate Need Coding?
Conductor plates for the 6HP19/6HP21 are sold in two states. A blank unit arrives with no vehicle-specific data loaded. A programmed unit arrives already coded for a particular vehicle group or for your VIN. Which one you need depends on how you intend to install it.
If you are a workshop with a ZF-compatible diagnostic tool, a blank plate is acceptable: you install it and run the coding and adaptation steps yourself. If you do not want to handle coding, a pre-programmed plate saves time, but you must supply the exact vehicle details at the time of order — model, year, engine, and ideally the VIN — so the data can be matched correctly.
Do not underestimate the anti-theft layer. BMW and Audi transmissions link the control unit to the vehicle electronics (the immobiliser and the gateway). A plate that is not matched to the vehicle can throw a component-protection or anti-theft fault after installation, which no amount of solenoid replacement will clear. This is why the coding question must be answered before you buy, not after the gearbox is back in the car.
The public repair guides and parts directories for the parallel ZF/DSG world make the same warning: unit protection and component protection are real, and they are cleared only by correct coding or by starting from a virgin, bench-prepared unit. If the seller cannot tell you whether their unit is blank or programmed, treat it as a red flag.
Before you install, ask the supplier directly: is this plate blank or pre-programmed? If pre-programmed, what vehicle data was used? If blank, which tool and software level does your shop need to code it? You can browse our transmission control units and mechatronics range to see the scope of units we carry.
Does the Valve Body Come with the Plate?
Sometimes. Some sellers offer the conductor plate alone; others bundle it with the valve body (the hydraulic block it bolts onto), and some offer the full mechatronic unit. These are different products at different price points, and the boundary must be clear before you order.
The conductor plate alone is the right choice when you have already confirmed the valve body is mechanically sound and you only need the electrical assembly. The valve body is the part that physically distributes oil pressure; the plate is the electrical brain. In many 6HP19 repairs, the plate fails while the valve body is fine, so the plate-only repair is faster and cheaper.
However, if the fault history shows harsh shifts plus sensor codes together, or the valve body has visible wear, replacing both in one go avoids a second labour bill. When the plate and valve body ship as a tested assembly, the supplier should be able to state what testing was done on the combined unit. Ask for the exact box contents in writing — plate only, plate plus valve body, or complete mechatronic — so you know what labour to plan for.
Bench Testing and 100% Tested Units: What Should You Demand?
Electrical parts are only as good as the testing behind them. A conductor plate is sold “working” by default in most listings, but that claim means nothing without a defined test. Ask what was tested: solenoid continuity, speed-sensor output, and communication between the plate and a scan tool. A supplier that bench-tests the unit under simulated working conditions — as the OE-spec policy for our 0260550008 plates states — can show that the electrical core is sound before it ships.
For a workshop, the value of a bench-tested unit is simple: it removes the plate from your diagnostic loop. When the gearbox still misbehaves after installation, you can focus on the valve body, the harness, or the vehicle side instead of re-replacing the part you just bought. That saves a full labour cycle.
After installation, the job is not finished until you run the basic settings. Most 6HP19/6HP21 repairs require adaptation: the control unit needs to learn the clutch fill characteristics of the rebuilt unit. A correct basic setting procedure clears stored adaptions and lets the gearbox re-learn shifts. Skipping it often produces harsh shifts that look like a failed repair. If you are not sure whether your diagnostic tool can run these routines, say so when you order — a supplier that knows the platform can advise whether you need a pre-programmed unit instead.
Warranty Scope: What Is Covered When the Fault Is Software?
Warranty terms on conductor plates vary more than people expect. Most suppliers cover hardware defects — failed solenoids, a cracked board, a dead sensor. Fewer cover installation error or damage caused by a faulty valve body that is reused without cleaning. And software faults caused by wrong coding, failed adaptation, or an unmatched vehicle are usually excluded, because the supplier cannot control how the unit was coded.
Read the warranty terms before you pay, not when you have a problem. A sensible policy for a bench-tested unit is a clear warranty period with hardware coverage and a defined list of exclusions: physical damage, incorrect installation, water ingress, and coding/adaptation performed by the buyer. A 12-month warranty on the supplied part, with testing evidence, is a reasonable baseline to expect for this class of product.
The practical move is to photograph the plate before installation, keep the invoice and the test record together, and note the software level shown by your diagnostic tool at first start. If a claim is ever needed, that paperwork is your evidence of the state the part arrived in and the state it was installed in. It protects you and the supplier, and it keeps the conversation honest.
Frequently Asked Questions
Can I replace 0260550008 with 0260550010 on my BMW or Audi?
Physically they are similar, but the transmission control unit software and pin-outs can differ by vehicle group. Match the OE number on your old plate and confirm the VIN with the supplier before ordering. The suffix is the first filter, not the final answer.
Do I need a blank or pre-programmed conductor plate?
If your shop can code and run basic settings with a ZF-compatible diagnostic tool, a blank unit works. If you want plug-and-play, order a pre-programmed unit and give the exact vehicle details (model, year, engine, VIN) at the time of order.
Will the gearbox show anti-theft or component-protection faults after installing a replacement plate?
It can, if the unit is not matched to the vehicle electronics. Coding and component-protection clearing must be part of your installation plan. Confirm with the supplier whether the unit is blank or programmed and what tooling is required.
Does the valve body come with the 0260550008 conductor plate?
It depends on the listing. The plate can be sold alone, with the valve body, or as a complete mechatronic unit. Confirm the box contents in writing so you know exactly what labour to plan for.
Is a bench-tested conductor plate worth paying more for?
Usually yes. A tested unit removes the plate from your diagnostic loop after installation, which saves labour if a fault remains. Ask exactly what was tested — solenoid continuity, sensor output, and scan-tool communication.
Are software or coding faults covered by warranty?
Usually not, because the supplier cannot control how the unit is coded after it leaves the factory. Hardware defects are typically covered; wrong coding, failed adaptation, and installation errors are standard exclusions. Read the terms before ordering.
Get a Fitment-Confirmed Quote
Submit your VIN, old-part label / OE number, model year, quantity, and destination port to receive a fitment confirmation and a quote. The same details that prove the correct 0260550008 variant — the OE number on the plate and the VIN of the car — become the records used to ship the right unit, with the programming state, test policy, and warranty confirmed in writing.
