The 4F25TC1 engine is a 2.5-litre turbo-diesel power unit that serves light commercial vans and SUVs. When the original unit loses compression, cracks a head, or stops passing the oil-pressure check, fleet owners and workshops face a replacement decision that starts with one code and ends with a quote. This guide explains which vehicles use the 4F25TC1, what the public spec sheets say, what each assembly option actually includes, and the test and freight checks you should demand before you pay.
Which Vehicles Use the 4F25TC1 Engine Code?
The 4F25TC1 belongs to the Foton engine family and is fitted to Foton light commercial vans — most commonly the Tunland/Tuyao-style 2.5-tonne vans and their SUVs — in markets that run China-VI emission standards. It is a four-cylinder, turbocharged, direct-injection diesel with an inline layout, DOHC valvetrain, and a 6-speed manual gearbox in the typical installation. Public config sheets list the displacement at 2,499 mL (2.5 L) and output at 116 kW (about 158 hp) at 3,000 rpm, with peak torque around 400 N·m delivered from about 1,300 to 2,700 rpm.
Because the code is a Foton-family code rather than a Toyota or VW code, it is easy to confuse with other 2.5 diesel engines that look similar in a photo. The only reliable way to confirm fitment is to match three records: the engine code stamped on the old block, the vehicle’s VIN, and the model year. The engine code must read 4F25TC1, not a similar neighbouring code. When the code on your old block matches the code on the supply listing, the main variables left are the transmission bellhousing, the mounting pattern, and the emissions calibration of the specific market.

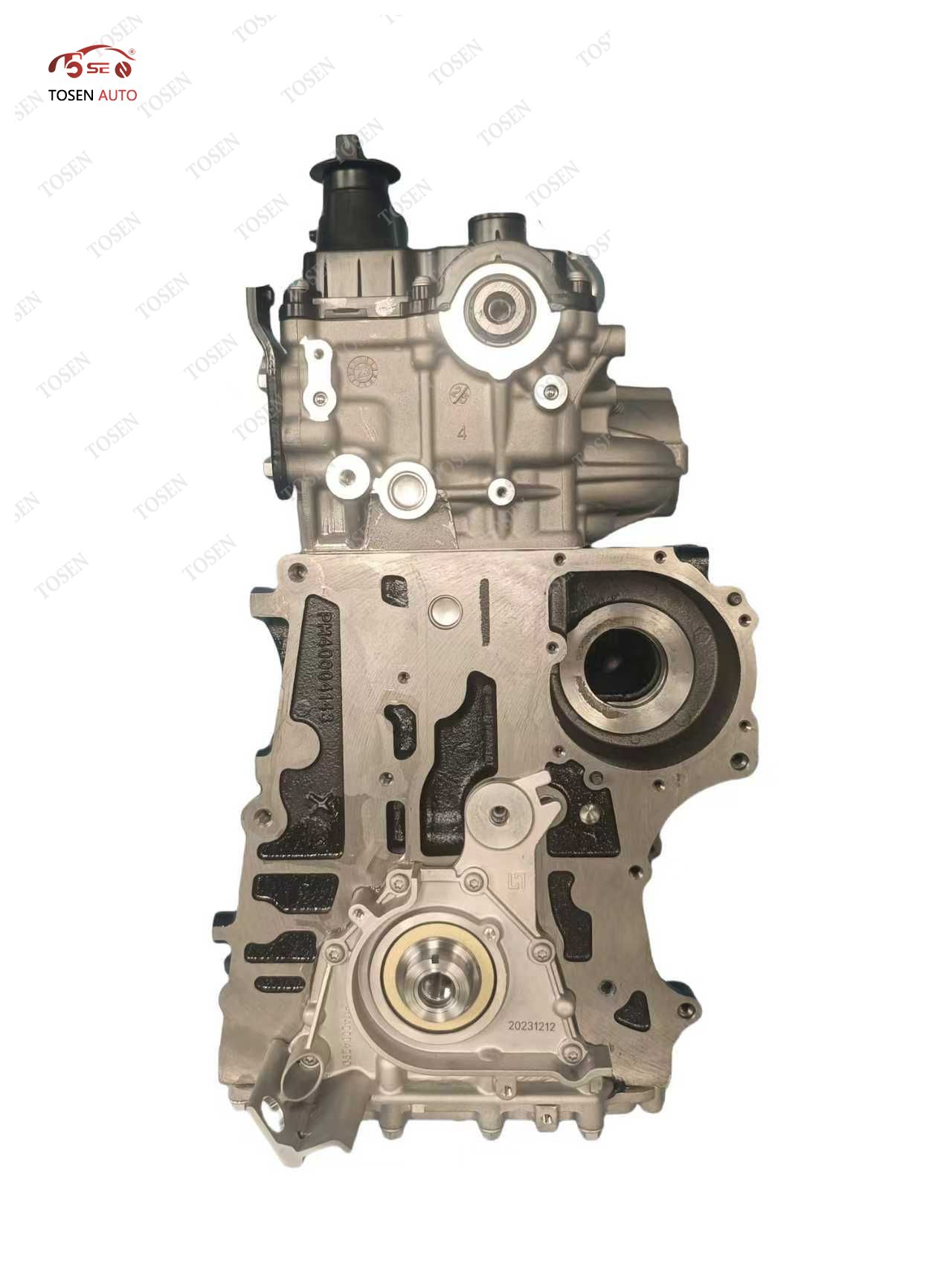

This is why a supplier should ask for the VIN first. A careful seller will confirm the exact variant before building a crate, because the difference between one light-commercial platform and another is often a turbo position or a bellhousing bolt pattern that no photo will show. You can review the exact unit built for this application on our 4F25TC1 2.5L Turbocharged Engine Assembly page, which lists the supplied configuration and the fitment details.
Before you request a quote, collect:
- The full VIN of the vehicle (decisive for variant).
- The engine code stamped on the old block — it must read 4F25TC1.
- The model year and body style (van or SUV).
- The old-part label or OE number from the failed engine.
- The transmission type if the listing asks for it.
Long Block vs Short Block vs Complete Assembly: What Do You Actually Get?
The second decision is the boundary of the supply. A short block is the lower half: block, crank, pistons, rods and bearings. A long block adds the cylinder head, valvetrain, camshaft and timing cover, so it carries the machined core of the engine. A complete assembly goes further and adds the manifolds, turbo, injectors and most accessories, which means far fewer parts transfer from the old engine.
| Assembly type | What is included | What you reuse from the old engine |
|---|---|---|
| Short block | Block, crankshaft, pistons, rods, bearings | Head, valvetrain, manifolds, turbo, injectors, accessories |
| Long block | Short block plus cylinder head, valvetrain, camshaft, timing cover and gasket set | Manifolds, turbo, injectors, sensors, front dress |
| Complete assembly | Long block plus manifolds, turbo, injectors and most accessories | Minimal — often just the harness and mounts |
For a 4F25TC1 replacement in a working van, the long block is usually the practical middle path: it removes the riskiest machining and assembly work while leaving the transfer parts under your control. But the boundary must be agreed in writing, because “engine” means different boxes from different sellers. Confirm which gaskets and seals ship with the unit, and whether the injection pump, turbo and sensors are on the crate or on your transfer list. To compare what each option includes across our catalogue, browse our engine assemblies and long blocks category.
New or Remanufactured: How to Verify Compression and Oil Pressure
Both new and remanufactured 4F25TC1 units are offered in the replacement market. A new unit uses fresh castings and parts; a remanufactured unit starts from a used core that is machined back to specification. Either path can be sound, but the label alone is not proof — the test data is.
Demand two results on every candidate unit: a compression test across all cylinders and an oil-pressure check at operating temperature. Independent buying guides such as United Engine’s replacement-engine guide make the same point: verified compression is the single best signal of a healthy bottom end, and a documented oil-pressure reading catches worn bearings that a visual check cannot. Ask the seller to state the values they measured, and keep those figures with the invoice so they become the baseline for any later warranty claim.
Treat a seller who cannot show compression or oil-pressure figures as a risk flag. For a workshop that will carry the installation risk, documented test results protect both sides when a first-start problem appears later. A new unit avoids core variability and is the lowest-risk option for a revenue van; a reman unit usually costs less but only makes sense with verified machining and crack-test records.
Warranty Start, Wooden Crating and Sea-Freight Risk
Most 4F25TC1 replacements cross an ocean in a wooden crate. Good crating is not packaging theatre: it protects bare machined surfaces from corrosion, keeps the casting from cracking in transit, and gives you a visible record if something goes wrong. Inspect the crate before you sign for it, photograph any damage while the carrier is present, and report it immediately — the carrier’s signature is the difference between a covered claim and a disputed one.
The warranty question is a second conversation that starts with a clear start date. Confirm whether the warranty clock begins at shipment, at delivery, or at first start, and write it down. The most common dispute in engine supply is not about whether the unit failed — it is about when the coverage period began. A supplier that states the start point in plain terms is easier to work with than one that leaves it vague.
First Start: Where Does the Supplier’s Responsibility End?
A long block or complete assembly is a machined unit, not a tuned and running engine. You (or your installer) must fit the transfer parts, prime the oil system, and carry out a controlled first start. That boundary — where the supplier’s duty ends and the installer’s begins — decides most warranty outcomes, so agree it in writing before the unit ships.
Run the first start cleanly: pre-fill the oil filter, crank with the fuel system disabled to build oil pressure, then start and watch for unusual noise, smoke and temperature. Record the cold compression and oil-pressure figures on the day of installation and keep them with the invoice. If anything fails later, those numbers show what the unit shipped with versus what your bay produced. For the wider selection logic between light-commercial platforms, see our related technical guide on choosing the right engine assembly.
Frequently Asked Questions
How do I confirm a 4F25TC1 engine matches my VIN exactly?
Match the engine code stamped on the old block (4F25TC1), the full VIN, and the model year. Send all three to the supplier so they can confirm the turbo position, bellhousing pattern and emissions calibration for your market before shipping.
Is a 4F25TC1 long block the same as a complete engine?
No. A long block adds the cylinder head, valvetrain and timing to a short block, but usually excludes manifolds, turbo, injectors and sensors. A complete assembly includes those, so far fewer parts transfer from your old engine.
Should I buy a new or remanufactured 4F25TC1?
It depends on budget and downtime. Both can be sound if the seller provides compression and oil-pressure test results. New units avoid core variability; reman units usually cost less but need verified machining and crack-test records to be trustworthy.
What should I check the moment the crate arrives?
Photograph the crate and the unit before unpacking. Look for moisture, a cracked casting and damaged machined faces. Report any issue to the carrier and supplier before signing, and confirm when the warranty clock starts.
Who is responsible if the 4F25TC1 fails after installation?
Warranty typically covers the supplied assembly against defects, not installation errors. The first-start line agreed before purchase sets where the supplier’s duty ends and the installer’s begins, so agree it in writing.
Get a Fitment-Confirmed Quote
Submit your VIN, old-part label / OE number, model year, quantity, and destination port to receive a fitment confirmation and a quote. The same identifiers that prove the 4F25TC1 code matches your vehicle become the records used to ship the correct unit for your light commercial van or SUV.
References
- Foton Motor — official light-commercial van config record listing engine model 4F25TC1, 2.499 L, 116 kW, 6MT: van.foton.com.cn (Foton Tuyao config)
- 17vin vehicle config record for 4F25TC1 — 2.5T turbo diesel, 2,499 mL, 158 hp, 400 N·m @ 1,300–2,700 rpm, DOHC, direct injection, China VI: 17vin.com model record
- United Engine — Replacement Engine Buying Guide (compression and condition verification): unitedengine.com/replacement-engine-buying-guide
- Toyota workshop documentation — engine code location and compression / oil-pressure test procedure reference: toyotamanuals.gitlab.io (test procedure)
