The Isuzu NPR 7:41 differential is the rear-axle gearset that carries torque from the driveshaft to the wheels on NPR trucks. When a workshop customer, a fleet, or an import order needs a replacement, the ratio and the axle type decide whether the new unit bolts straight in and runs quietly or turns into a week-long headache. This guide explains how to confirm the 7:41 ratio, how to tell a front-axle unit from a rear-axle unit, what to check on the gears before you pay, and when a complete assembly beats a bare gear set.
How to Confirm the 7:41 Ratio Before You Order
The “7:41” in the part name is a tooth count, not a mystery code. The crown wheel (the ring gear) has 41 teeth, and the pinion has 7 teeth. Divide 41 by 7 and you get roughly 5.86 to 1, which is the final-drive ratio the truck was built with. For comparison, a 9:41 set works out to about 4.56 to 1, and a 10:41 set is about 4.10 to 1. If you install the wrong one, the speedometer reads wrong, the engine revs higher than it should at highway speed, or the truck feels flat under load.
There are three reliable ways to confirm the ratio. First, read the axle nameplate or build sticker. On many NPR axles the ratio is stamped near the fill plug or on the axle tube, so a quick look under the truck can settle the question without taking anything apart. Second, count the teeth yourself: remove the diff cover, count the crown-wheel teeth and the pinion teeth, and divide. Third, use a gear ratio calculator such as the one published by Spicer Parts to double-check the math before you quote a price to a customer. A calculator turns a photo of a worn gearset into a confirmed number instead of a guess.
Do not rely on the truck’s model year alone. NPR trucks left the factory with several rear-axle ratios depending on the market, the gross vehicle weight rating, and the transmission. The correct habit is to send the seller the old part label or the axle code together with the exact tooth counts, rather than just saying “it is an NPR.” When a supplier asks for those details up front, it is usually a sign they actually match units instead of shipping whatever is close.

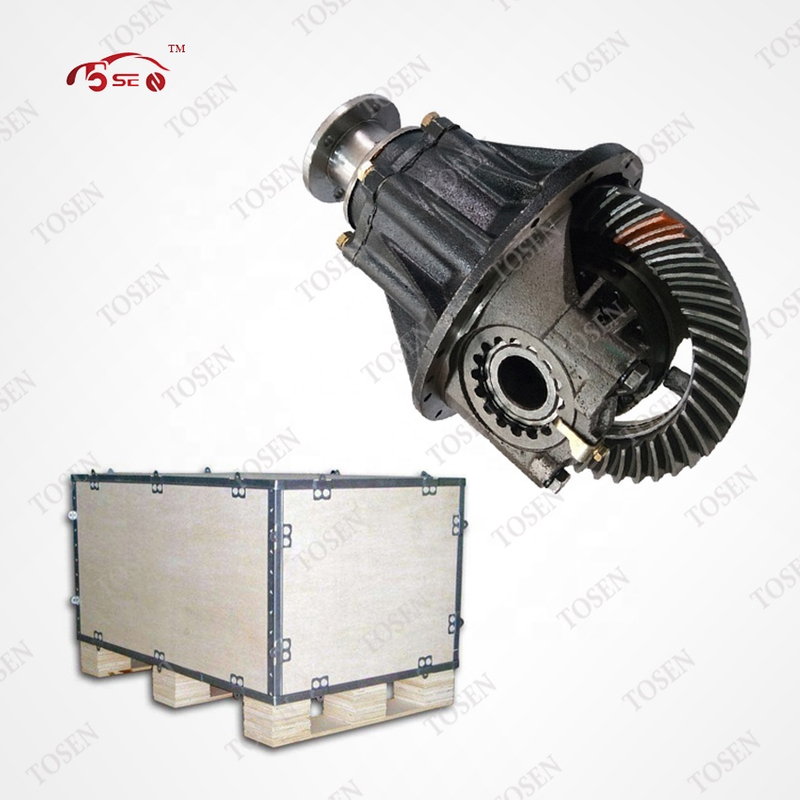

The unit shown on our OEM-Grade 7×41 Differential Assy Compatible with Isuzu NPR Truck page is supplied as a complete assembly for the NPR rear axle, so the crown-to-pinion pairing is already fixed at 41 teeth over 7 teeth and does not depend on an installer matching two separately sourced gears.
Front or Rear Axle? Match the Housing, Splines and Bearings
NPR trucks carry different differentials on the front and rear axles, and they are not interchangeable. A rear 7:41 unit will not drop into the front housing, and a front unit will not bolt into the rear axle. Before you order, confirm which axle the part is meant for by checking the housing casting, the spline count on the pinion flange, the bearing size, and the mounting bolt pattern. All four have to match the old unit, not just one or two of them.
If you are buying for a customer or importing the part, collect the axle type, the chassis code, and the model year first. Then compare the pinion flange splines and the brake or backing-plate pattern against the old differential. A small spline mismatch is one of the most common causes of “the part looked right but it will not fit,” and it is exactly the kind of mistake that is easy to prevent when the old part is photographed and shared with the supplier before the order is placed.
Heavy-load use makes this worse. A fleet NPR that runs fully loaded every day puts stress on the same splines and bearings, so any mismatch shows up faster than it would on a light-duty truck. That is why a careful supplier asks for the axle position and the old part details instead of selling one “universal” NPR differential for every truck.
We keep complete differential assemblies and gear sets in stock across the NPR range, with the front and rear units handled separately. You can browse the range on our differential assemblies and gear sets page and compare the listings against your axle before you commit.
Gear Contact Pattern and Backlash: What a 100% Tested Unit Should Show
Two checks tell you whether a differential will run quietly or whine from the first kilometer: the tooth contact pattern and the backlash. The contact pattern is where the pinion teeth meet the crown-wheel teeth under load. It should sit in the middle of the tooth face, not crowded at the top or bottom edge. Backlash is the tiny gap between the teeth. Too much backlash produces a clunk when you take up the drive; too little makes the gears bind and overheat. The correct backlash is a set of thousandths of an inch, and it belongs to the specific gearset, not to a one-size-fits-all number.
Suppliers verify these two things on a rig before a unit is allowed to ship. Our NPR differentials are marked 100% tested, which means each assembly passes a contact-pattern and rotational check rather than leaving the setup to whoever fits it first. The value of this becomes clear when you look at how crown wheels and pinions are made: manufacturers such as Quaife explain that the crown and pinion are a matched pair, cut and lapped together, so replacing one side while keeping a worn opposite gear is exactly how noise and early failure start.
For a deeper walk through ratio math, tooth counts, and what the numbers mean on the road, see our related technical guide, which explains the same ratios in the context of choosing the right set for the application.
Complete Assembly or Crown Wheel and Pinion Set?
When the gears are worn but the carrier housing and bearings are still in spec, a crown wheel and pinion set can be the cheaper route. When the carrier bearings, the pinion bearings, or the differential case itself are damaged, a complete assembly is the faster and safer option: the case, gears, and bearings ship as one matched package, and nobody has to set preload and contact from scratch on a dirty workshop floor.
For NPR trucks that work under load — delivery fleets, box trucks, tow work — the complete assembly is usually the right call because it restores the whole load path at once. A bare gear set makes sense only when you have a known-good carrier and a technician who can set up the contact pattern correctly. If the truck has already been running with a noisy diff, the carrier bearings have almost certainly taken a beating, which pushes the decision toward the complete unit.
The honest answer depends on the state of the carrier, and that is a question best answered with photos of the old unit rather than a guess. Ask the supplier for both options and a fitment check against your old part; a supplier who can quote either route is giving you the information to make the cost call, not steering you toward the more expensive option by default.
Protect Yourself on Whining Noise and Fitment Disputes
Differential noise is one of the most argued-about failures in truck repair, because the cause can sit in the part, in the installation, or in the axle itself. To keep responsibility clear, document the old unit before removal: photograph the old part label, the axle code, the tooth count, and the condition of the carrier, and write down whether the truck made noise before the swap. That record answers the first question every supplier will ask if something goes wrong.
Ask what the supplier verifies before shipping and what the warranty actually covers. Our NPR differentials ship with a 12-month warranty and are checked for contact pattern and smooth rotation, so a noisy result is far more likely to come from installation or an axle problem than from the gearset. Keep the old parts until the new unit has run quietly for a few days; that single habit settles most disputes without a single angry phone call.
Frequently Asked Questions
How do I know if my Isuzu NPR needs a 7:41 differential?
Read the axle nameplate or build sticker, or pull the cover and count the teeth. Forty-one crown-wheel teeth over seven pinion teeth means 7:41 (about 5.86 to 1). If you only have the VIN, send it to the supplier and let them confirm the build ratio against the truck’s specification.
Can I use a 10:41 differential in place of a 7:41?
Only with the right carrier, a speedometer correction, and the same axle type. The housings look similar, but the gears, the carrier, and sometimes the pinion flange differ. Swapping ratios without checking can cause noise, wrong speed readings, and extra wear, especially on a loaded truck.
Is the 7:41 assembly for the front or rear axle of the NPR?
This assembly is supplied for the NPR rear axle. The front axle uses a different housing and steering-side components. Confirm the axle position on the truck before ordering, and photograph the old unit if you are in doubt.
How do I check backlash on a used differential?
Hold the pinion still, set a dial indicator against a crown-wheel tooth, and rock the crown wheel gently. The reading should fall within the manufacturer’s spec for that gearset, typically a few thousandths of an inch. If you are not sure, have a shop also check the contact pattern before you reuse the carrier.
Is a complete assembly better than buying just the gears?
If the carrier or its bearings are worn, yes. The complete assembly ships as a matched and tested package with preload and backlash already set. Gears alone only make sense on a known-good carrier with a technician who can set the contact pattern correctly.
Get a Fitment-Confirmed Quote
Submit your VIN, old-part label or OE number, truck model year, quantity, and destination port. TosenAuto will confirm the ratio and axle type against the actual build, check the listing against your old part, and send you a fitment-confirmed quote with sea-freight packing. No guessing, no wrong-ratio shipments, no surprises at the workshop door.
