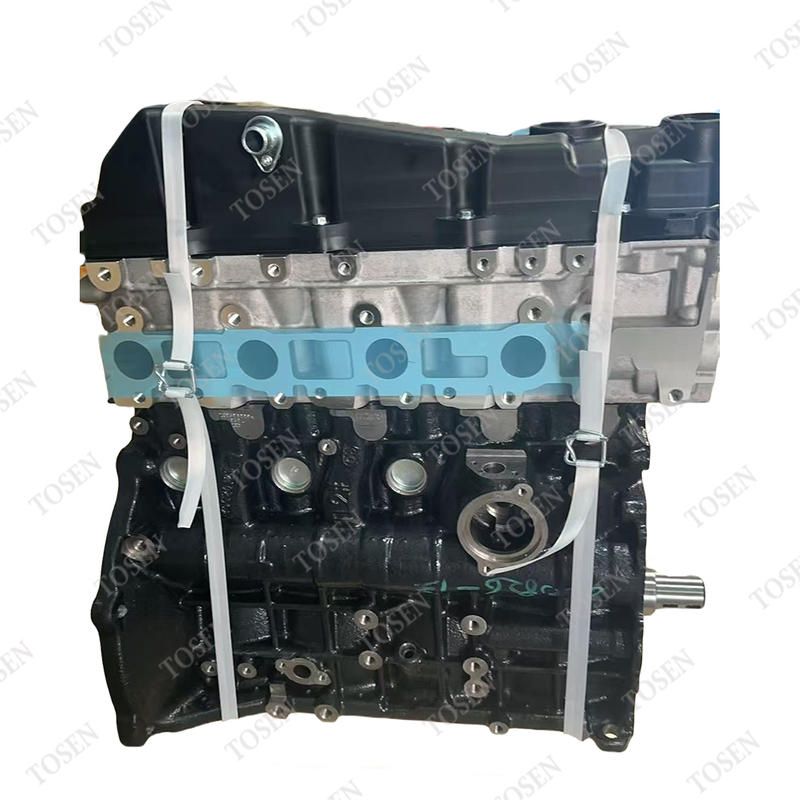

The 2KD engine long block is the 2.5-litre common-rail diesel core that powers a large share of Toyota Hiace vans and Hilux pickups around the world. When the original engine loses compression, suffers a bottom-end failure, or cracks a head, a long block is often the smart middle path between a bare short block and a full crate engine. This guide explains how to confirm fitment, what a 2KD long block actually includes, when a long block is the right call, and the checks you should demand before you pay.
Does the 2KD Long Block Match Your VIN and Engine Code?
Fitment starts with three identifiers that must agree. The engine code is stamped on the block and recorded against the vehicle’s build data. Toyota’s published Hilux repair manual shows where the engine serial is located and how to read it against the chassis record, so the code is something you can verify rather than guess.
Before you order, line up your VIN, the engine code on the old block (typically 2KD-FTV), and the model year of the Hiace or Hilux. Those three values decide turbo variant, injection setup, and bellhousing pattern. A supplier that asks for the VIN first is following the correct process, because it removes the guesswork that causes wrong-shipments and costly returns.
The Hiace and the Hilux share the 2KD-FTV family, but they are not interchangeable in every detail. Wheelbase, turbo sizing, and emission calibration can differ by market and year. That is why the VIN matters more than a model-name guess. Give the seller the full VIN and let them confirm the exact variant before any crate is built.
One common mix-up is the 2KD against the larger 1KD (3.0L) and the older 1TR/2TR petrol units. They look similar in a bay photo but share almost no internal parts. The engine code is the only reliable way to tell them apart, and it is the first thing a careful supplier will ask for. If a listing cannot state the code, pause and verify before you commit.
You can see the exact unit built for this application on our 2KD Engine Long Block for TOYOTA Hiace A 3.0 Diesel Motor Engine page, which lists the Hiace A 3.0 fitment and the supplied configuration.
Run this quick fitment checklist before quoting:
- VIN of the target vehicle (decisive for variant).
- Engine code stamped on the block, e.g. 2KD-FTV.
- Model year and body (Hiace van, Hilux single/double cab).
- Turbo and transmission type if the listing asks for it.
- OE or old-part label from the failed engine.
When Does a 2KD Need a Long Block Instead of a Repair?
Not every 2KD failure calls for a long block. A leaking injector washer, a failed glow plug, or a single stuck EGR valve is a repair, not a core swap. A long block becomes the right answer when the damage reaches the sealed internals.
The common triggers are predictable. Prolonged overheating can warp the head and lift the liners. A spun bearing or a scored crank means the bottom end is finished. Loss of compression across two or more cylinders, especially with blow-by at the filler, points to ring, liner, or valve-seat damage. Once the head and block both need major work, the labour to rebuild often exceeds the cost and risk of a supplied long block.
The practical test is simple: get a compression and leak-down reading on the old engine. If the numbers are far below spec, stop quoting individual parts and move to a long-block conversation. That reading also becomes your baseline when you later compare a supplier’s “as-shipped” test data.
What Does a 2KD Long Block Include (and What It Doesn’t)?
A long block sits between a short block and a complete engine. The boundary matters because it tells you what you must transfer from your old engine and what labour to plan for. The table below keeps the three options straight.
| Assembly type | What is included | What you reuse from the old engine |
|---|---|---|
| Short block | Block, crankshaft, pistons, rods, bearings | Head, valvetrain, manifolds, turbo, accessories |
| Long block | Short block plus cylinder head, valvetrain, camshaft, timing cover and gasket set | Intake/exhaust manifolds, turbo, injectors, sensors, front dress |
| Complete engine | Long block plus manifolds, turbo, injectors and most accessories | Minimal — often just harness and mounts |
Because a long block usually excludes the intake and exhaust manifolds, turbo, injectors, and sensors, it costs less than a complete engine but needs a careful teardown of the donor. Plan your labour around the transfer parts, and confirm with the seller which gaskets and seals ship in the box. A complete gasket set for the reused manifolds saves a second parts order mid-build.
To compare what ships with each option across our catalogue, browse our engine assemblies and long blocks category.
New or Remanufactured — and How to Verify Condition
Both new and remanufactured 2KD long blocks are on the market. A new unit uses fresh castings and components; a remanufactured unit starts from a used core that is machined back to specification. Either can be sound, but the proof is in the test data, not the label.
Ask for two results on every unit: a compression test across all cylinders and an oil-pressure check at operating temperature. Independent buying guides such as United Engine’s replacement engine guide make the same point — verified compression is the single best signal of a healthy bottom end. Toyota’s workshop manual defines the compression and oil-pressure test procedure, so you can ask a seller to follow the same standard you would use in your own bay.
If a seller cannot show a compression or oil-pressure figure, treat that as a risk flag. For a workshop or a fleet, documented test results also protect you when a warranty question comes up later, because they set the baseline the engine shipped with. New units avoid core variability; reman units usually cost less but need verified machining and crack-test records to be trustworthy.
Crating, Sea Freight and the First-Start Responsibility Line
Most 2KD long blocks cross an ocean in a wooden crate. Good crating is not packaging theatre: it stops the bare machined surfaces from corroding and keeps the casting from cracking in transit. On arrival, inspect the crate before you sign, and photograph any damage while the carrier is present.
The second half of the deal is the first-start line. A long block is a machined assembly, not a tuned, running engine. You must fit your manifolds, turbo, injectors, and sensors, then prime the oil system and carry out a controlled first start. Agree in writing where the supplier’s responsibility ends and your installer’s begins — that boundary decides most warranty outcomes.
A clean first start protects both sides. Pre-fill the oil filter, crank with the fuel pump disabled to build oil pressure, then start and watch for unusual noise, smoke, and temperature. Note the cold compression and oil-pressure figures and keep them with the invoice. They are the reference point for any later claim.
For the selection logic across Hiace and Hilux variants, see our related technical guide on choosing the right engine assembly.
Frequently Asked Questions
How do I confirm a 2KD long block fits my Hilux exactly?
Match your VIN, the engine code stamped on the block (2KD-FTV), and the model year. Share those with the supplier so they can confirm the turbo and bellhousing variant before shipping.
Is a 2KD long block the same as a complete engine?
No. A long block adds the cylinder head, valvetrain, and timing to a short block but usually excludes manifolds, turbo, injectors, and accessories. You transfer those from your original engine.
Should I buy a new or remanufactured 2KD long block?
It depends on budget and downtime. Both can be sound if the seller provides compression and oil-pressure test results. New units avoid core variability; reman units usually cost less but need verified machining records.
What should I check the moment the crate arrives?
Photograph the crate and the block before unpacking. Look for moisture, a cracked casting, and damaged machined faces. Report any issue to the carrier and supplier before signing.
Who is responsible if the engine fails after installation?
Warranty typically covers the supplied assembly against defects, not installation errors. The first-start line agreed before purchase sets where the supplier’s duty ends and the installer’s begins.
Get a Fitment-Confirmed Quote
Submit your VIN, old-part label / OE number, model year, quantity, and destination port to receive a fitment confirmation and a quote. This closes the loop: the same identifiers that prove fitment become the records used to ship the correct 2KD long block for your Hiace or Hilux.
