The Audi A6L C5 1.8L engine (the 1.8-litre, 20-valve, five-cylinder-era inline four that powered the long-wheelbase A6 through the C5 generation) is a workhorse that is now well into its service life. When the original unit loses compression, leaks from a cracked head, or suffers bottom-end wear, an Audi A6L C5 1.8 engine long block is often the fastest route back to a running car. This guide walks through the engine-code and VIN checks that confirm fitment, the exact boundary between a long block and a complete engine, the test evidence to demand, and the installation and first-start steps that protect both the buyer and the installer.
How to Confirm the Engine Code and VIN Before You Buy
Fitment on the C5 A6L starts with three identifiers that must agree: the VIN, the engine code stamped on the block, and the model year of the car. The C5 A6L used a family of 1.8-litre and 1.8T engines, and different markets received different emission calibrations and accessory layouts. A block that fits a European-market car may need a different bellhousing or sensor harness than a Chinese-market A6L, so guessing by “it is a 1.8” is not enough.
Find the engine code before you order. On the C5 A6L the code is stamped on the block near the gearbox side, and it also appears in the owner paperwork and online parts databases when you enter the VIN. Written engine records — the same method Toyota’s published workshop manuals use to read an engine serial against a chassis record — are the reliable way to do this rather than trusting a photo of the bay. Line up the VIN, the code, and the year, and send all three to the supplier.
Two cars that look identical can carry different engines. The naturally aspirated 1.8L and the 1.8T share the same displacement but not the same head, pistons, or turbo plumbing. If you order a long block and the donor car is a 1.8T, the intake and exhaust manifolds will not line up the way you expect. The code is the only clean way to tell them apart, and it is the first thing a careful supplier will ask for.

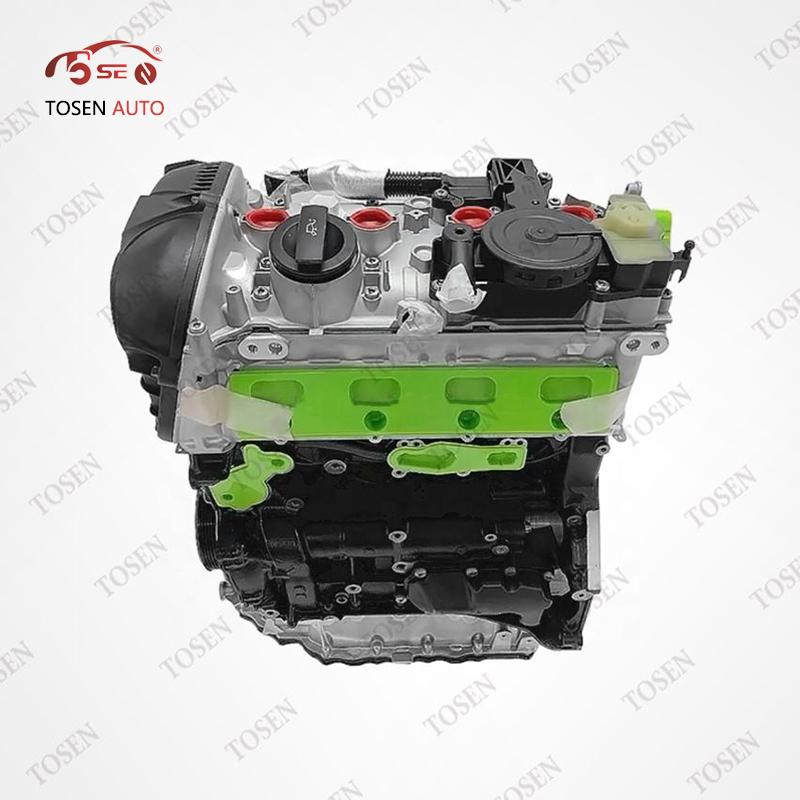

The exact unit for this application is listed on our Long Block Engine for Audi A6L C5 1.8L Replacement page, which sets out the supplied configuration and fitment notes. Before you quote a customer, run this short checklist:
- Full VIN of the target car.
- Engine code stamped on the old block (for example ADR for the 1.8-litre 20V, or the 1.8T code if the car is turbocharged).
- Model year and market (domestic A6L vs European A6).
- Transmission type and whether the car uses a different bellhousing pattern.
Long Block, Short Block, or Complete Engine: What Is Inside the Crate
Not every C5 A6L failure needs the same assembly. The difference between a short block, a long block, and a complete engine decides how much of the old car you must strip and what your labour plan looks like.
| Assembly type | What is included | What you reuse from the old engine |
|---|---|---|
| Short block | Block, crankshaft, pistons, rods, bearings | Head, valvetrain, manifolds, sensors, front dress |
| Long block | Short block plus cylinder head, valvetrain, camshafts, timing cover and gasket set | Intake/exhaust manifolds, sensors, injectors, water pump, front dress |
| Complete engine | Long block plus manifolds, injectors, sensors and most accessories | Minimal — often just harness and mounts |
A long block sits in the middle. It costs less than a complete engine and still replaces the sealed internals that usually fail. But it means the shop must carefully transfer the manifolds, sensors, and front accessories from the old engine, so plan the labour around that strip-down. Confirm with the seller which gaskets and seals ship in the box — a complete gasket set for the reused parts avoids a second parts order in the middle of the job.
To compare the boundary across every configuration we stock, browse our engine assemblies and long blocks category. This is the same comparison a buyer should make before deciding which assembly class fits their budget and downtime.
New or Remanufactured, and How Compression and Oil Pressure Are Verified
Both new and remanufactured A6L C5 1.8L long blocks are available. A new unit uses fresh castings and components; a remanufactured unit is machined back to specification from a used core. Either can be sound — the proof is in the test data, not the label.
Ask every seller for two results on the unit they quote: a compression test across all cylinders and an oil-pressure check at operating temperature. Independent buying guides such as United Engine’s replacement engine guide make the same point — a verified compression reading is the strongest single signal of a healthy bottom end. Written workshop manuals define the compression and oil-pressure procedure so you can ask a seller to follow the same standard you would use in your own bay.
Treat a seller who cannot show figures as a risk flag. For a repair shop or a fleet, documented test results also protect you when a warranty question comes up later, because they fix the baseline the engine shipped with. New units avoid core variability; reman units usually cost less but need verified machining and crack-test records before they deserve your trust.
For the selection logic that applies to this engine family, see our related technical guide on choosing the right engine assembly — the same checkpoints transfer to VW/Audi-family long blocks.
Installation Steps That Protect Your Warranty Claim
How the long block is fitted is almost as important as which long block is supplied. A clean install keeps the warranty boundary simple, because it makes it easy to show the engine was handled correctly. Start by cleaning the engine bay and draining the old coolant and oil. If the old unit had a bottom-end failure, flush the oil cooler and replace the filter, because debris left in the cooler can destroy a new engine in the first hundred kilometres.
Transfer the timing marks before you remove the old head assembly, and compare the new block against the old one on the bench — dowel positions, crank sensor ring, and bellhousing bolt pattern should match. Fit new seals for the oil pan, valve cover, and timing cover from the gasket set rather than reusing hardened originals. Torque the head and main bearing bolts to the figures in the workshop procedure, not by feel, because a long block relies on correct clamp loads for its sealing.
Prime the oil system before the first start. Crank the engine with the fuel relay or injector harness disconnected until the oil-pressure light goes out, then start and hold the engine at a steady idle while you watch for leaks, noise, and smoke. Record the cold oil pressure and the running temperature. Keep that record with the invoice — it is the evidence that separates a supplier defect from an installation issue if a warranty question ever arises.
Crating, Sea Freight, and the First-Start Responsibility Line
Most A6L C5 1.8L long blocks cross an ocean in a wooden crate. Good crating is not packaging theatre: it keeps bare machined surfaces from corroding and stops the casting from cracking in transit. On arrival, photograph the crate and the block before you sign for delivery, and report any damage while the carrier is present.
The second half of the deal is the first-start line. A long block is a machined assembly, not a tuned, running engine. You must fit your manifolds, sensors, and accessories, prime the oil system, and carry out a controlled first start. Agree in writing where the supplier’s responsibility ends and your installer’s begins — that boundary decides most warranty outcomes on a replacement engine.
A clean first start protects both sides. Pre-fill the oil filter, crank with the fuel system disabled to build oil pressure, then start and watch for unusual noise, smoke, and temperature. Note the cold compression and oil-pressure figures and keep them with the invoice. They are the reference point for any later claim, and they close the loop that started with the engine code.
Frequently Asked Questions
How do I confirm the engine code on an Audi A6L C5 1.8L?
Read the code stamped on the block near the gearbox side, then cross-check it against the VIN in an online parts database or the owner paperwork. Send the code, the full VIN, and the model year to the supplier for confirmation before ordering.
Is a long block the same as a complete engine for the A6L C5?
No. A long block adds the cylinder head, valvetrain, camshafts, and timing to a short block, but it usually excludes the intake and exhaust manifolds, sensors, injectors, and front accessories. Those parts transfer from your original engine.
Should I buy a new or remanufactured 1.8L long block?
It depends on budget and downtime. Both can be sound if the seller provides compression and oil-pressure test results. New units avoid core variability; reman units usually cost less but need verified machining records.
What should I inspect when the crate arrives?
Photograph the crate and the block before unpacking. Look for moisture, a cracked casting, and damaged machined faces. Report any issue to the carrier and supplier before signing the delivery note.
Who is responsible if the engine fails after installation?
Warranty typically covers the supplied assembly against defects, not installation errors. The first-start line agreed before purchase sets where the supplier’s duty ends and the installer’s begins.
Get a Fitment-Confirmed Quote
Submit your VIN, old-part label / OE number, model year, quantity, and destination port to receive a fitment confirmation and a quote. This closes the loop: the same identifiers that prove fitment become the records used to ship the correct A6L C5 1.8L long block for your job.
