The 33030-26691 OE number appears on transmission and gearbox parts listings for the Isuzu 4JA1 truck family. If you run a repair shop, import spare parts, or manage a fleet, this guide helps you decide whether that number matches your truck, what to check before you buy, and how to get the right unit delivered. You will learn how to confirm cross-vehicle fitment, choose between 2WD and 4WD variants, plan gearbox oil and filter needs, compare new and remanufactured units, and prepare for freight and installation. Most suppliers expect you to know the answer before you write; this guide gives you the questions a careful buyer should ask first.
Does 33030-26691 Fit Every Isuzu 4JA1 — and Can It Cross to a Toyota Hiace?
The short answer: the number means something, but it is not a promise of universal fit. 33030 is a gearbox-family OE prefix used across the Isuzu 4JA1 truck line and parts of the Toyota Hiace 3L and 5L family. Public parts listings group 33030-26691 with 33030-OW641 and 33030-0L010, which tells you these numbers share a family — not that they are identical in every bolt hole. The stamped part number on the old gearbox is the ground truth, and it is usually easy to find on the bellhousing or the side of the case once the unit is out.
People also confuse 33030-26691 with JF011E, which is a continuously variable transmission code from a different manufacturer. They are not the same unit. This kind of mix-up is exactly why industry guidance tells buyers to confirm the transmission code from the vehicle itself, not from memory. When you check, use the VIN and the part number stamped on the old unit, not the model name on the door.

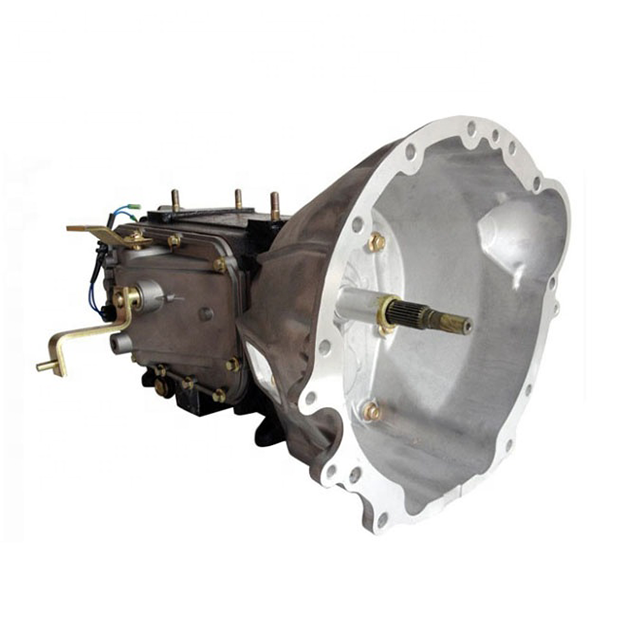

For the exact unit we supply, look at our For Isuzu Truck Gearbox 4JA1 Transmission Parts OEM 33030-26691 product page, then confirm your application with the checks below before you commit.

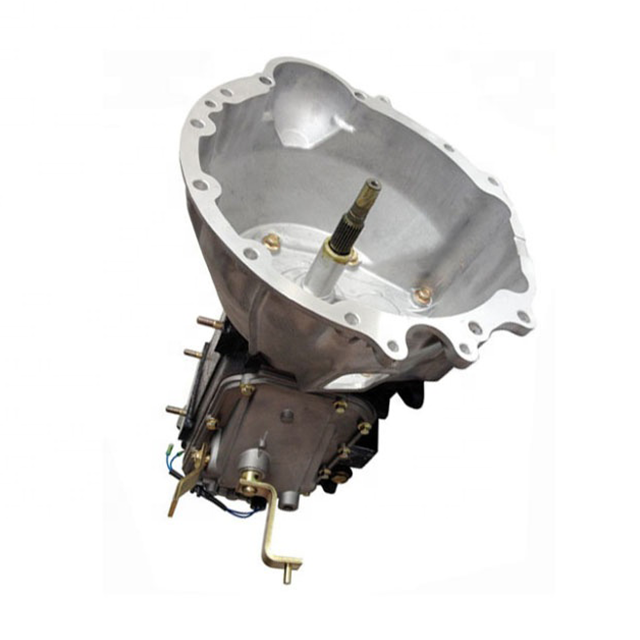

2WD or 4WD: Input and Output Flanges Decide the Fit
The biggest split inside the 4JA1 gearbox family is between 2WD and 4WD. The housing looks similar from the outside, but the input shaft, the output flange, and the connection for a transfer case are different. Ordering the wrong one means the gearbox sits in a crate while the truck waits for another round of shipping.
Run this short checklist before you send any part number to a supplier:
- Read the old-part label or the OE number stamped on the old gearbox.
- Count the splines on the output shaft and compare the flange bolt pattern.
- Note whether the truck has a transfer case or a separate differential setup.
- Record the drive type (2WD or 4WD) and the rear axle ratio if it is written on the plate.
- Photograph the old unit from the input side and the output side.
A supplier that asks for drive type and flange details first is doing the job correctly. That question is not a delay — it is the difference between a correct shipment and a costly return.
Gearbox Oil and Filters: What the 4JA1 Box Needs Before First Run
A freshly supplied gearbox usually arrives dry or with light assembly oil. Before the first run, fill it with the correct gearbox oil and, where the unit is fitted with a filter, service it at the same time. The exact oil grade depends on the variant of the box, so ask the supplier for the recommended grade rather than guessing. Cheap or wrong oil is one of the fastest ways to damage synchro rings and bearings on a new unit.
If the gearbox has a filter or a magnetic plug, inspect both after the first few hundred kilometres. A thin film of fine metal dust is normal on a brand-new unit as the parts bed in. Lumps or heavy particles are not normal, and they should be reported with photos to the supplier while the warranty line is still clear.
Keep the oil and filter record with the invoice. If a warranty question comes up later, that simple log tells both sides exactly what went into the box and when.
New vs Remanufactured Gearbox Parts — and How Core Returns Work
You can order a new unit, a remanufactured unit, or individual gearbox parts. A new unit uses fresh castings, gears, and bearings. A remanufactured unit starts from a used core that is stripped, measured, and rebuilt back to specification. Both can be sound, but the proof is in the inspection and test record, not in the label on the box.
Ask for two documents on every unit: a parts list that names what was replaced, and a test record that shows the box ran before it was packed. If a seller cannot produce either, treat that as a warning flag. For a workshop or a fleet, those records also become your baseline if something fails after installation.
Clarify the warranty terms in the same conversation. Most suppliers cover the supplied unit against defects in materials and workmanship, not against installation mistakes. Write down how long the cover runs, what documentation a claim needs, and who decides whether the unit is returned or inspected on site. A warranty that is agreed before payment is paperwork; one that is negotiated after a failure is an argument.
If you choose remanufactured, settle the core-return terms before you pay. Three questions matter: how long does the supplier hold the core deposit, what condition must the old core be in, and who pays the return freight? Written terms prevent the most common arguments between buyers and reman suppliers.
Our transmissions category covers both manual and automatic transmissions and individual gearbox parts, so you can compare new, reman, and spare parts in one place.
Crate Size, Weight and Sea-Freight Planning
Most 4JA1 gearboxes travel in a wooden crate sized for a complete unit and its parts. Ask for the exact crate dimensions and weight before you book freight. That number decides your container plan, your lift or crane rental on arrival, and part of your import cost. If you are ordering for several trucks at once, ask how multiple crates stack and whether they fit a standard container width — the answer changes your freight quote more than the unit price does.
Wooden crates protect machined surfaces and stop the housing from cracking in transit. On arrival, inspect the crate before you sign for it, photograph any damage while the carrier is still present, and verify the part numbers against the packing list before you unpack. This five-minute habit settles most transit disputes before they start.
For the wider choice between transmission types and how they change your maintenance plan, see our related technical guide on manual versus automatic transmissions for fleets.
Installation Flow After the Crate Arrives
Installation is where a good quote becomes a working truck. Follow a fixed order and you avoid the classic mistakes that turn a correct gearbox into a failed claim.
- Unload with proper lifting gear — a gearbox crate is heavy and the oil is not in it yet.
- Unpack on a clean floor and compare the new unit to the old one, part number by part number.
- Fit the clutch, linkage, or adapters from the old unit if the new box ships without them.
- Fill with the correct oil grade and check the level with the box level.
- Connect the shift linkage and check every gear position by hand before start-up.
- Run the first test with the truck on level ground, listen for noise in each gear, and watch for leaks.
- Re-check the oil level after a short run, because fresh seals and bearings settle.
If anything looks wrong — a wrong flange, a leaking seal, a missing part — stop, photograph it, and contact the supplier with the photos before you continue. The warranty line is cleanest when the problem is reported before the unit is run hard.
For fleet buyers, keep one record per truck: the VIN, the gearbox part number, the install date, and the first-run oil change. When ten trucks share the same part number, that log tells you instantly which units were built in the same batch and which ones need a follow-up check.
Frequently Asked Questions
Is 33030-26691 the same as JF011E?
No. 33030-26691 is a gearbox-family OE number used on Isuzu 4JA1 truck and related listings. JF011E is a continuously variable transmission code from a different manufacturer. Always confirm the number stamped on your old unit before ordering.
Can a 33030-26691 gearbox from a Toyota Hiace fit my Isuzu 4JA1 truck?
The numbers share a family, but fit depends on drive type, flanges, housing, and shaft ends. Confirm with your VIN and the old-part label before you order, and let the supplier verify the variant for you.
Should I buy a new gearbox or a remanufactured one?
Both options can be sound. Ask for a parts list and a test record on every unit, and clarify the core-return terms before you pay. New units avoid core variability; reman units usually cost less but need verified records.
What should I check when the crate arrives?
Photograph the crate before signing, inspect for damage while the carrier is present, and compare the part numbers on the unit against the packing list. Report anything unusual before you unpack fully.
How do I confirm fitment before placing an order?
Send the VIN, the old-part label or OE number, the model year, the drive type, and a photo of the old unit. A supplier that confirms against those details will ship the right variant the first time.
Get a Fitment-Confirmed Quote
Submit your VIN, old-part label / OE number, model year, quantity, and destination port to receive a fitment confirmation and a quote. This closes the loop: the same identifiers that prove the correct 33030-26691 Isuzu 4JA1 gearbox parts also become the record used to pack, crate, and ship your order.
References
- ATSG — JF011E automatic transmission service manual (why exact unit identification matters before teardown): atsg.walkelis.com (ATSG JF011E manual)
- FenderBender — “The JF011E to the JF015E” (how transmission code mix-ups cost money and how to verify): fenderbender.com (JF011E to JF015E)
- Manuals.plus — transmission product manuals for cross-checking OE numbers and specs: manuals.plus (B01HG13BMY)
