A Toyota Hiace 4×2 gearbox is a two-wheel-drive manual transmission that sends engine output to a single rear axle through one propeller shaft, while a 4×4 gearbox is an assembly that must also connect a transfer case and carry a front output for the driven front axle. The two units sit in the same engine bay, carry the same model badge and perform the same job of matching engine speed to road speed, yet the case, the rear extension housing, the output yoke and the mounting arrangements differ between them. Understanding those differences before ordering is what separates a gearbox that bolts straight in from a crate that goes back on the truck.
Key facts: a 4×2 gearbox drives one rear axle through a single propeller shaft and carries no transfer case and no front output flange; a 4×4 assembly must connect a transfer case and carry a front output; the case, rear extension housing, output yoke and mounts differ between the two layouts; order by drive layout and gearbox identification, never by model name alone.
What a 4×2 Gearbox Actually Does
A 4×2 manual gearbox in the Toyota commercial family is a five-speed-class assembly that transfers engine torque to a rear-wheel-drive layout through a driver-selected set of gear ratios. Power enters the case through the input shaft and the clutch housing at the front, where the clutch housing bolts directly to the engine backplate. The driver selects ratios through an internal rail-and-fork mechanism that slides synchronised hubs onto the gear clusters, and the torque then leaves through the output shaft at the rear of the case, heading toward the propeller shaft.
Because the layout drives one axle only, the gearbox output reaches the rear axle through a single propeller shaft. The assembly carries no transfer case and no front output flange, and the rear extension housing and output yoke are configured for a two-wheel-drive driveline rather than a four-wheel-drive transfer connection. The Manual Transmission Gearbox for Toyota Hilux 4×2 listed by TOSEN is exactly this kind of unit: a complete rear-wheel-drive gearbox assembly, identified and supplied against the vehicle configuration rather than against a model name.
Why the 4×4 Version Cannot Be Swapped In
The reason a 4×4 gearbox cannot replace a 4×2 unit, or the other way round, comes down to what sits behind the gearbox. A 4×4 assembly must connect to a transfer case and carry a front output, because the driveline continues forward to drive the front axle as well as the rear. A 4×2 assembly drives the rear axle only. That single difference cascades through the whole unit: the case, the rear extension housing and the output yoke differ between the two, and the mounting arrangements differ with them, so neither version will line up with the interfaces the other layout expects.
A workshop that receives the wrong version discovers the mismatch at the physical interfaces, not on paper. The rear output connection does not match the driveline, the case does not carry the transfer-case mounting the 4×4 chassis requires, and the mounts do not sit where the crossmember expects them. The table below summarises the contrast at the points a buyer can actually check.
| Check point | 4×2 gearbox | 4×4 gearbox |
|---|---|---|
| Driven axles | Single rear axle | Rear axle plus a front output for the front axle |
| Output path | Single propeller shaft to the rear axle | Driveline continued through a transfer case |
| Transfer case | Not carried and no connection for one | Must connect to a transfer case |
| Front output flange | None | Carried at the case |
| Rear extension housing | Configured for a two-wheel-drive driveline | Configured for the transfer connection |
| Case and mounts | Differ from the 4×4 version | Differ from the 4×2 version |
Why the Hiace Model Name Is Not Enough
Drive layout is only one of the selection traps on the Hiace. Hiace vans were produced over a long run with several engine families and gearbox variants, so two vehicles carrying the same model name can be fitted with different transmission hardware. Over a long production life, one platform can carry several engine codes, and each engine code can call for a different gearbox, which is why ordering by model name alone is the single most common cause of receiving a wrong part.

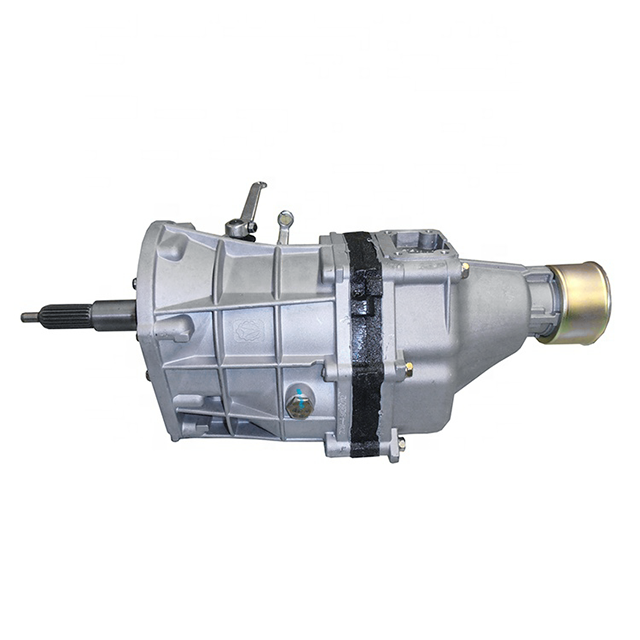

The dependable route is to select by identification instead. On the G55 family, the reference 33030-0W641 G55 manual transmission is an assembly-level Toyota number that covers the complete gearbox as a serviceable unit rather than a single internal part, so the full number and the family marking together identify what bolts between the engine and the driveline. On the diesel side, the gearbox for Toyota Hiace 3L and 5L diesel engines is matched by the OEM numbers 33030-0W641, 33030-26691 and 33030-0L010 together with the engine code — and because more than one OEM number can apply to the same gearbox family, the number stamped on the original unit is the one that counts.
How to Verify the Correct Gearbox Before Ordering
Verification for a gearbox of this kind happens at the points a workshop can see and measure on the removed unit. The reliable way to confirm fitment is to compare the old assembly against the unit on offer, interface by interface, before the order is confirmed.
- Confirm the drive layout first: the vehicle must be a 4×2 rear-wheel-drive application, not a 4×4, because the two gearbox versions are not interchangeable.
- Compare the bellhousing bolt pattern against the engine backplate of the removed unit.
- Count and match the input shaft spline at the front of the case.
- Identify the output yoke type at the rear extension housing against the driveline connection.
- Check the secondary points: gear lever position, mount locations and the speedometer drive arrangement.
- Record the chassis code and the identification printed on the original gearbox label.
- Record the vehicle chassis code and the engine identification before the old gearbox leaves the workshop.
- Photograph the bellhousing and the rear output connection of the removed assembly.
- Copy the identification from the original gearbox label, including the complete assembly number where one is present.
- Send the details with the quantity, the destination and a note of any related components required alongside the gearbox.
TOSEN checks each manual gearbox it supplies against the bellhousing pattern, the input spline and the output arrangement described on the product page before dispatch, so the assembly presented for installation corresponds to the configuration stated in the order. Units ship as complete gearbox assemblies; components such as the clutch, the release mechanism and the rear mounting are confirmed against the enquiry rather than assumed, and a Hilux 4×2 manual gearbox enquiry is handled with the same checks on the 4×2 side.
Frequently Asked Questions
Is a Toyota 4×2 gearbox the same as the 4×4 version?
No. A 4×2 gearbox delivers output to a single rear axle through one propeller shaft and carries no transfer case and no front output, while a 4×4 assembly must connect to a transfer case and carry a front output for the front axle. The case, the rear extension housing, the output yoke and the mounts differ between the two versions, so the order should follow the drive layout of the vehicle rather than the model name alone.
Why do two Toyota Hiace gearboxes with the same model name differ?
Hiace vans were produced over a long run with several engine families and gearbox variants, so two vehicles carrying the same model name can be fitted with different transmission hardware. Over a long production life, one platform can carry several engine codes, and each engine code can call for a different gearbox. Confirming the OEM number stamped on the original unit together with the engine code prevents the wrong-part delivery that ordering by model name alone causes.
How do I confirm the correct gearbox before ordering for a Hiace?
Compare the removed gearbox against the unit offered on the points a workshop can see and measure: the bellhousing bolt pattern, the input shaft spline and count, the rear output connection, the gear lever position and the mount locations. Supplying the vehicle chassis code, the engine identification and the number printed on the original gearbox label then allows the assembly to be checked against the enquiry before the order is confirmed and dispatched.
What should a Hiace gearbox enquiry include?
A complete enquiry includes the vehicle chassis code and engine identification, the identification printed on the original gearbox label, photographs of the bellhousing and the rear output connection, and the quantity required. Adding the destination and noting whether the assembly is needed on its own or with related components such as the clutch allows the drive layout and configuration to be confirmed, so the quotation matches the gearbox the vehicle actually carries.
Send the chassis code, engine identification, original gearbox label and photographs of the bellhousing and rear output connection to TOSEN for a quotation on the correct gearbox configuration, or browse the manual transmission listings to start a sample order for your Hiace or Hilux fleet.
